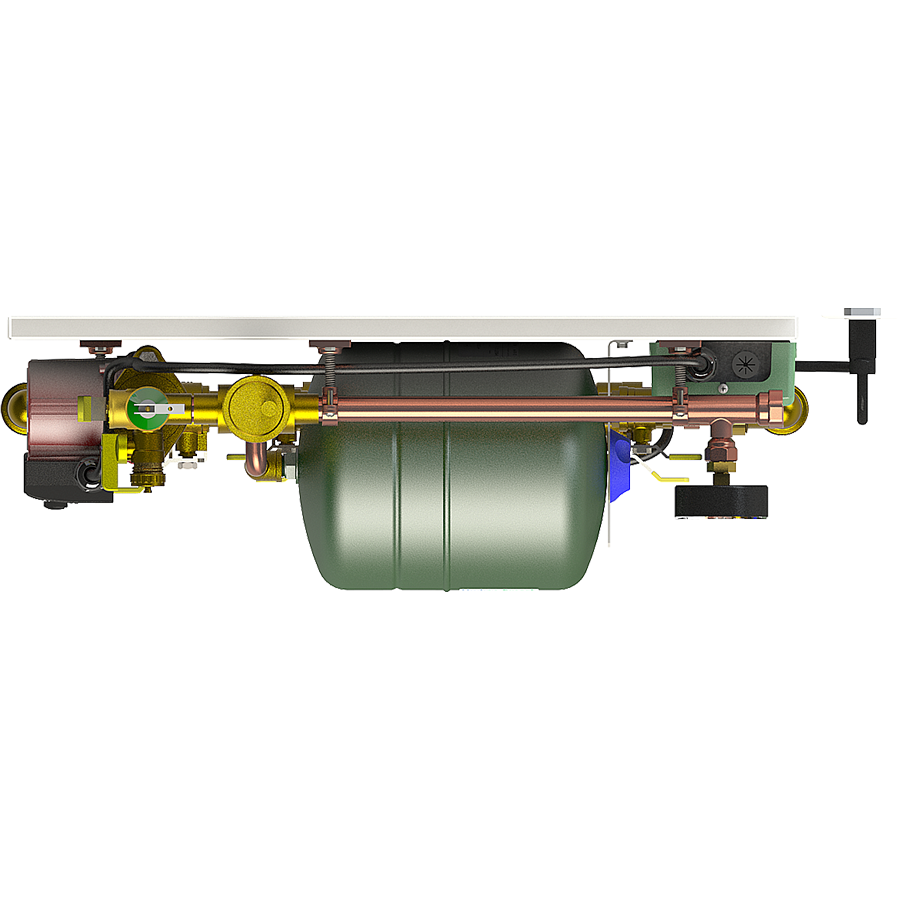

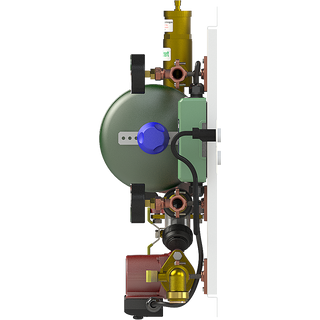

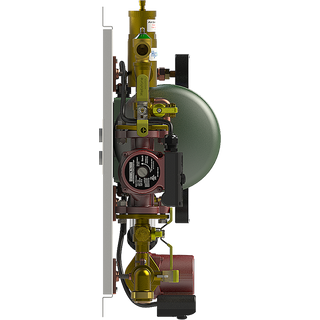

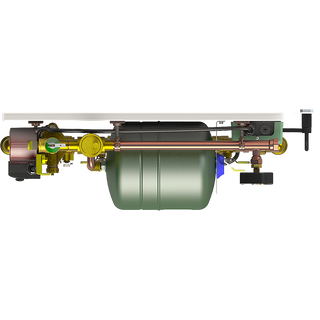

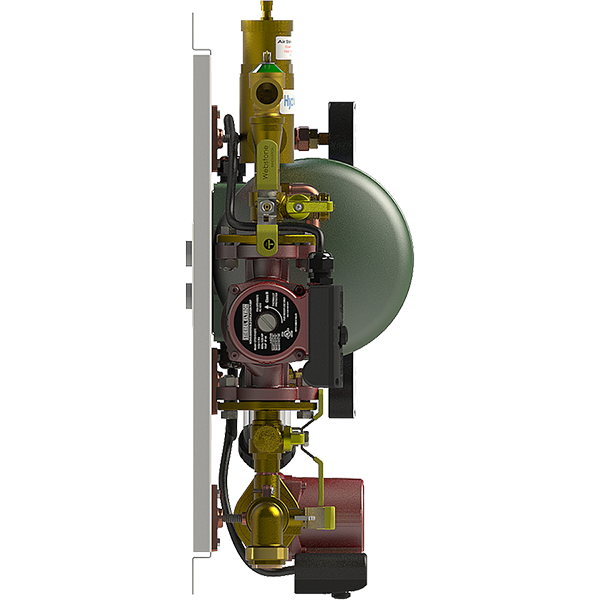

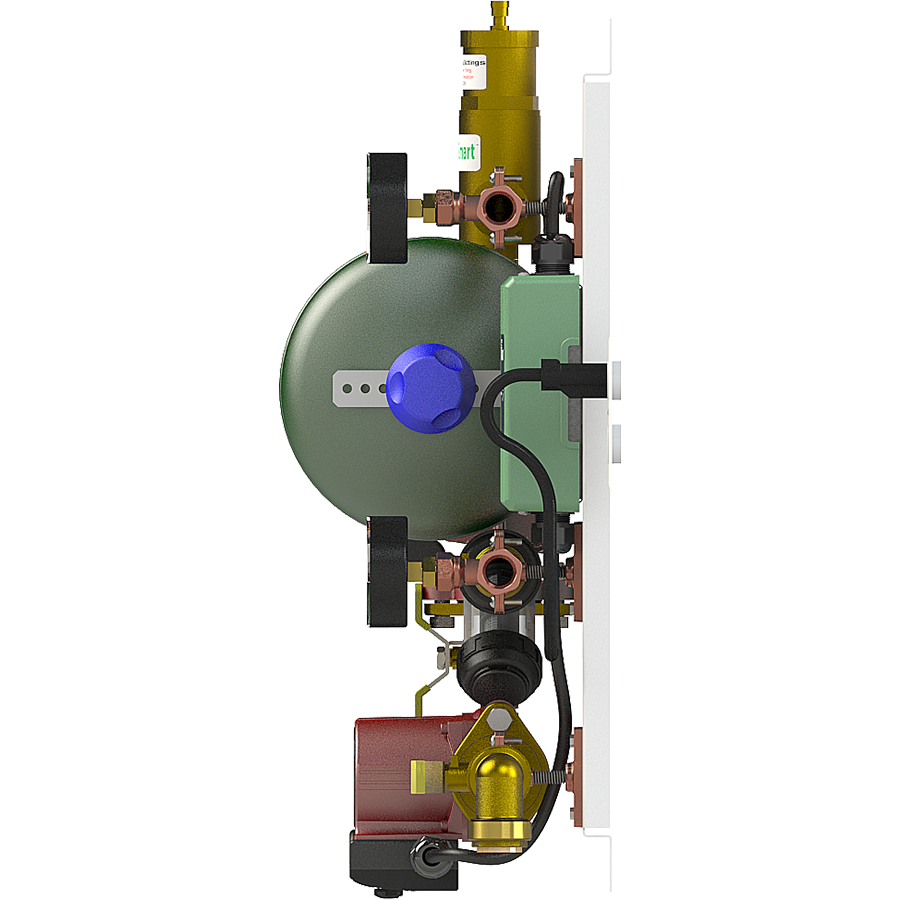

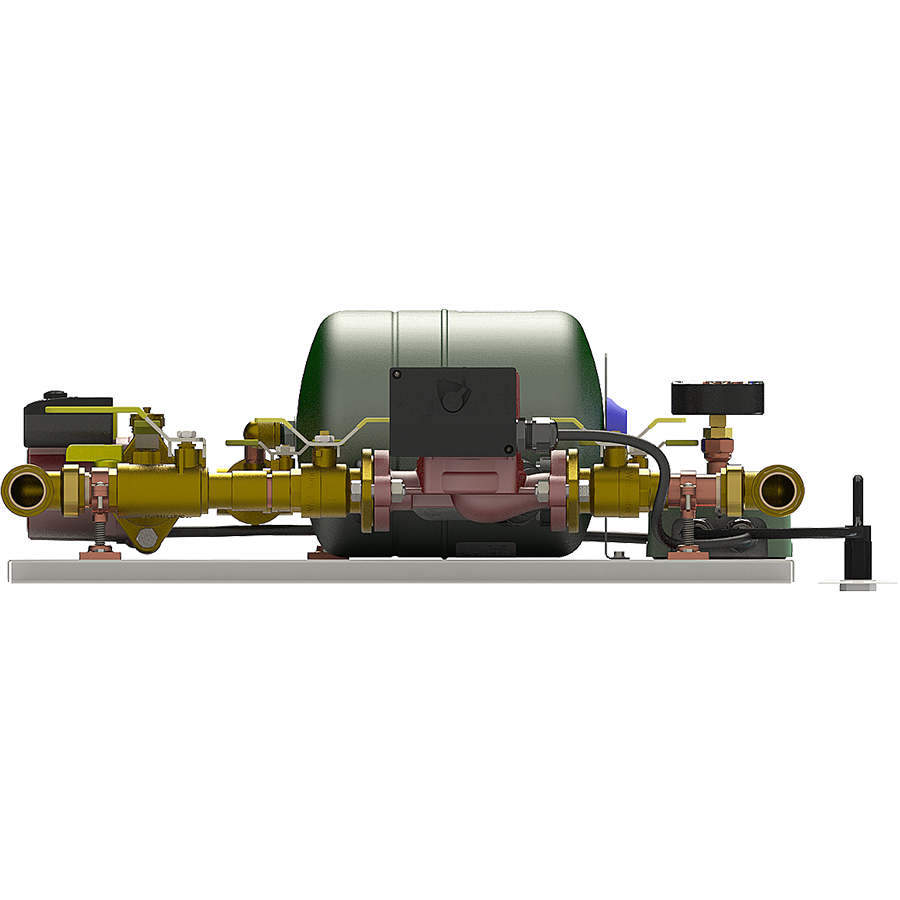

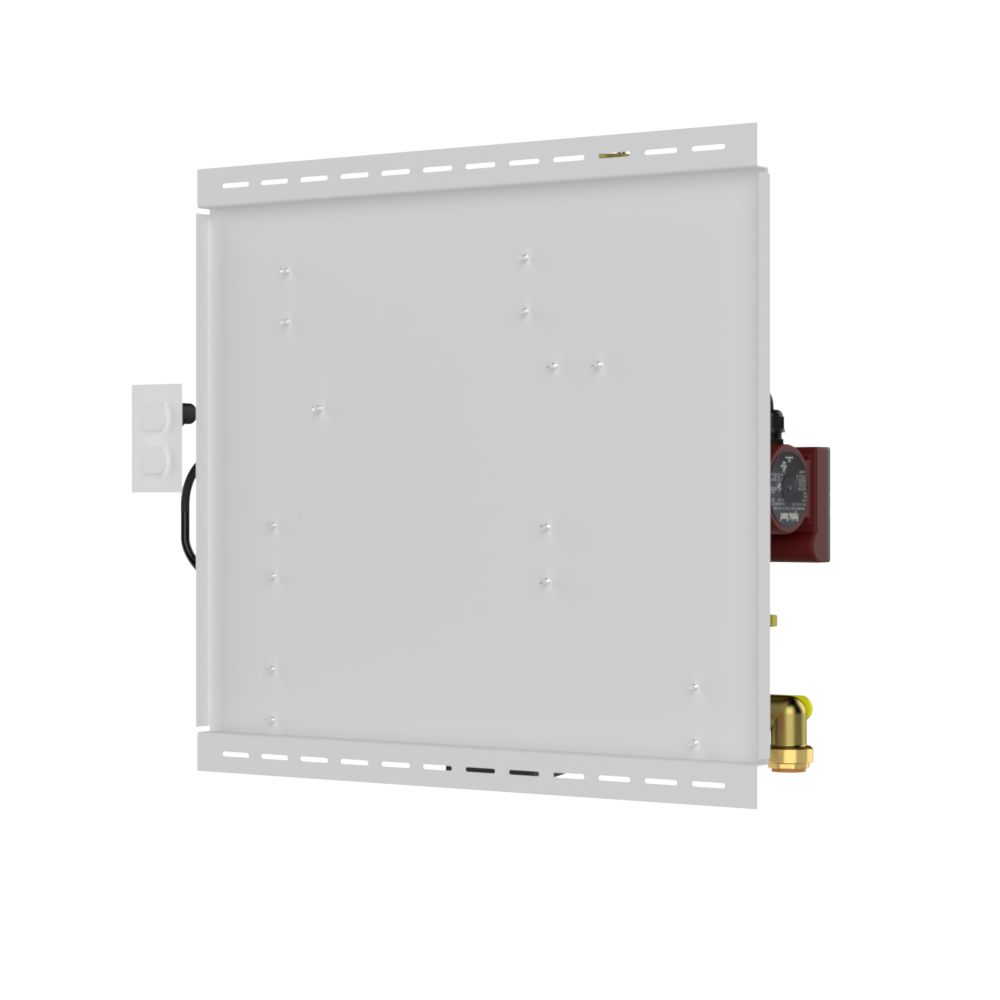

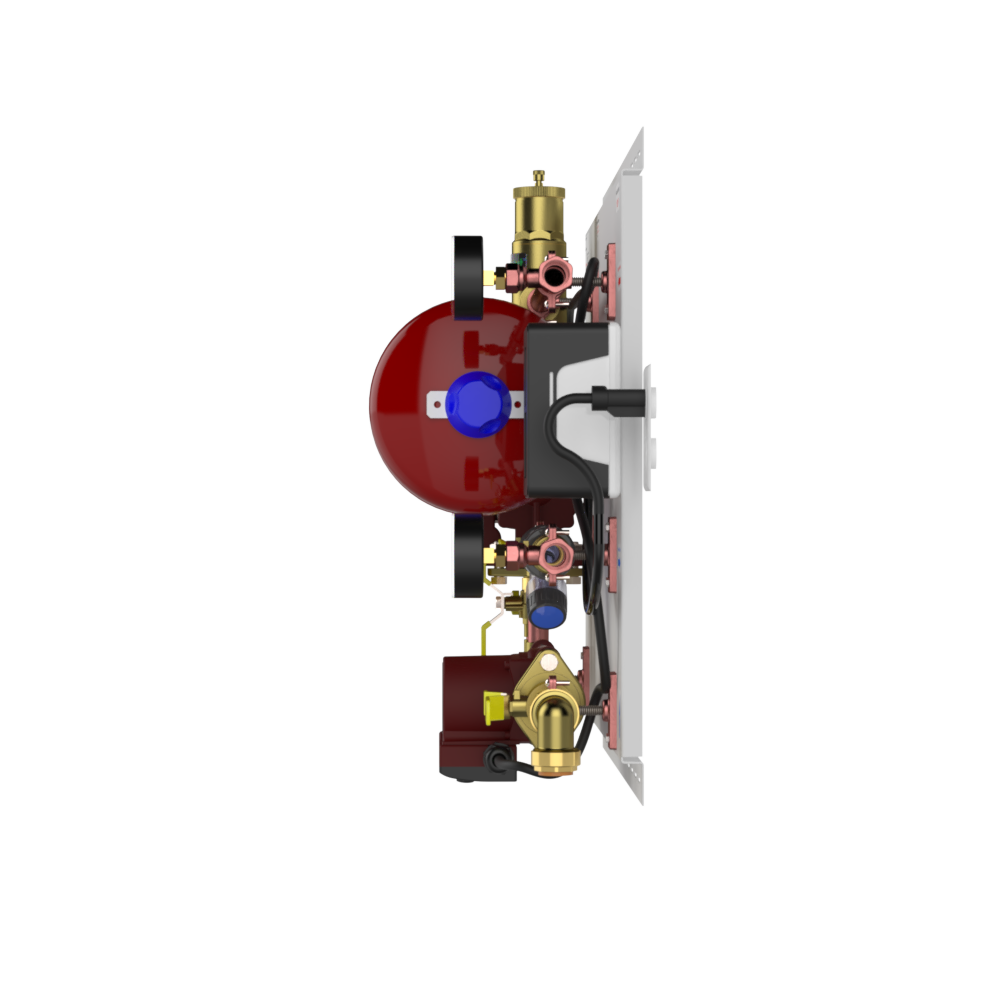

HSPS120LT - One Zone Master Panel
Description

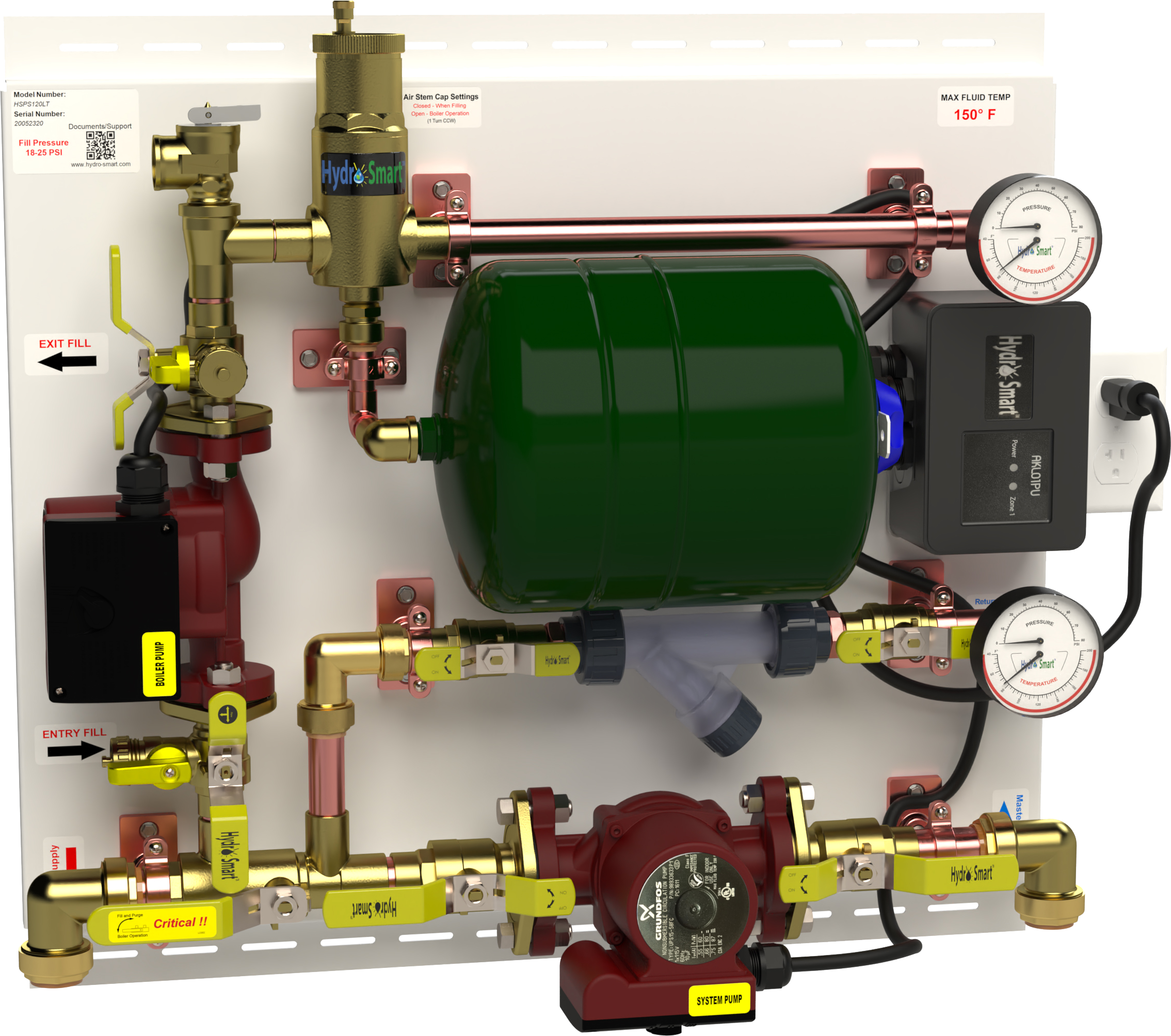

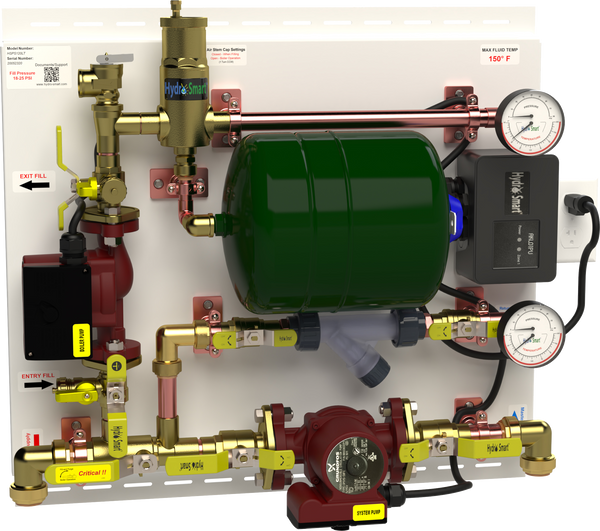

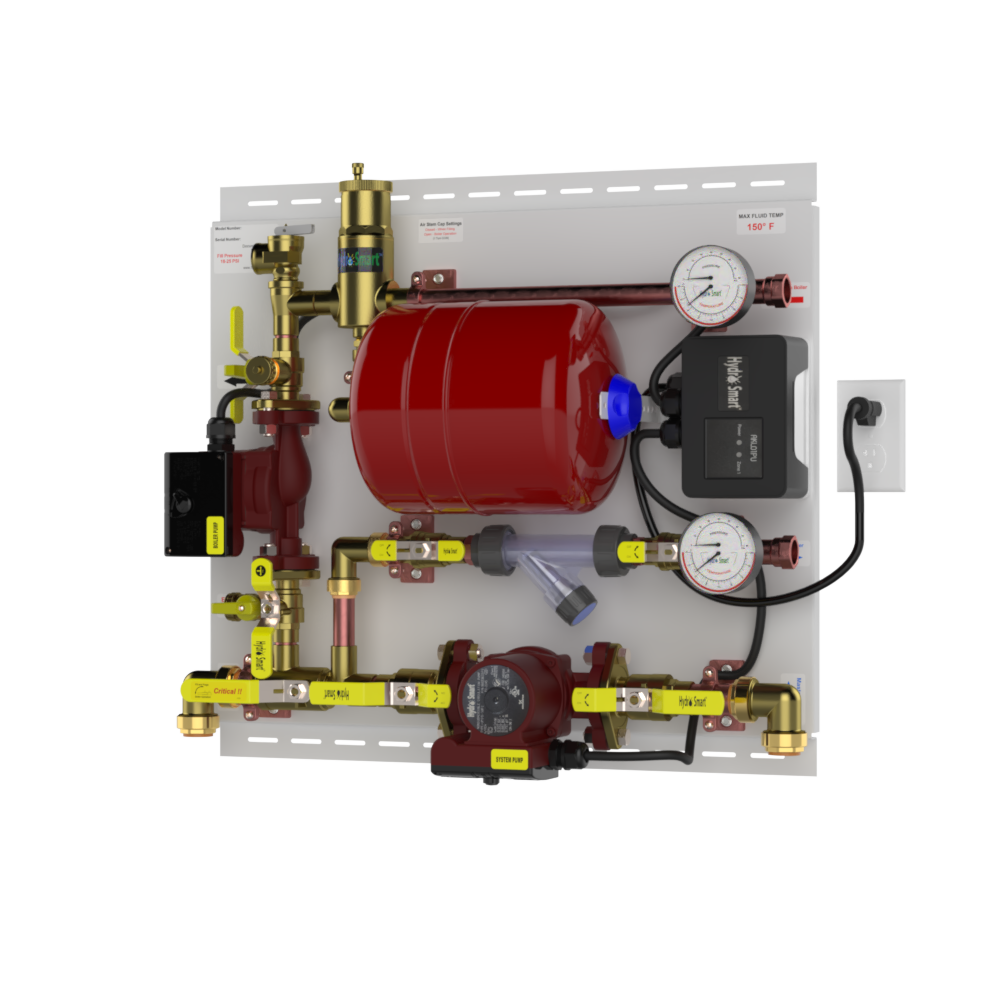

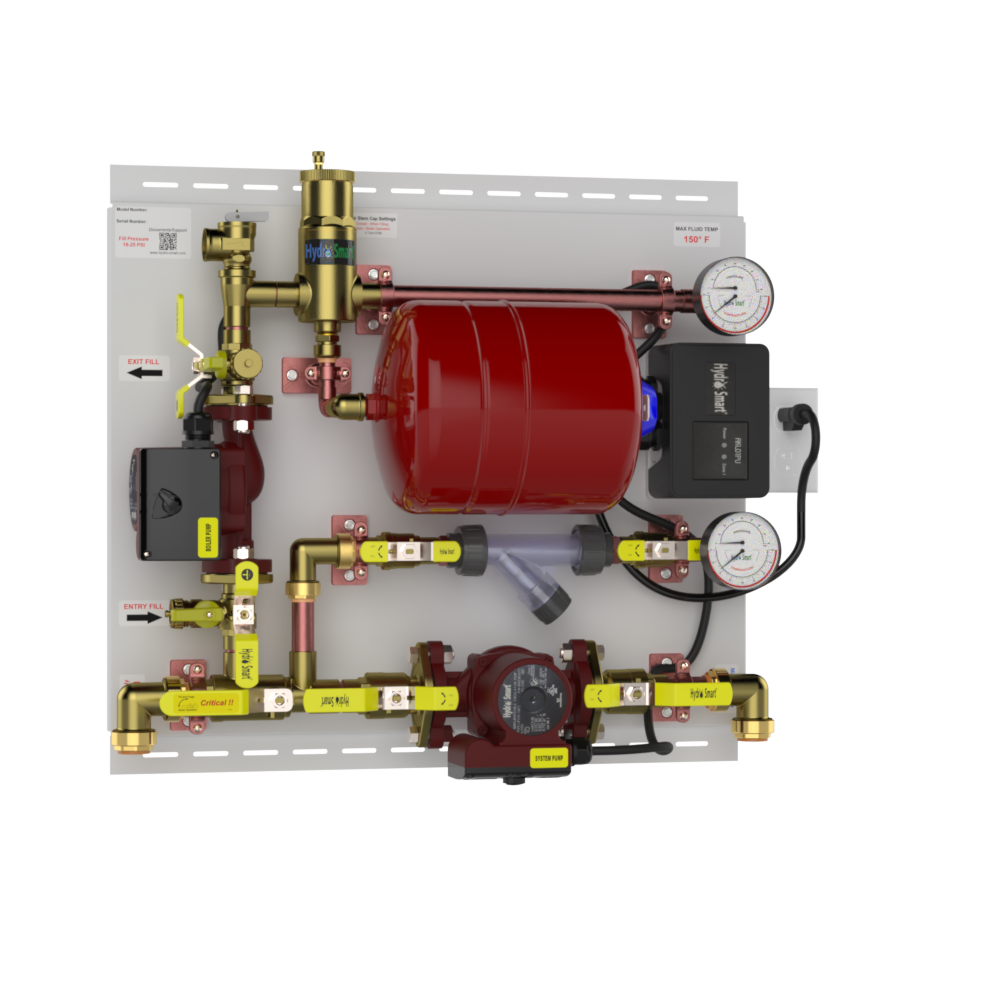

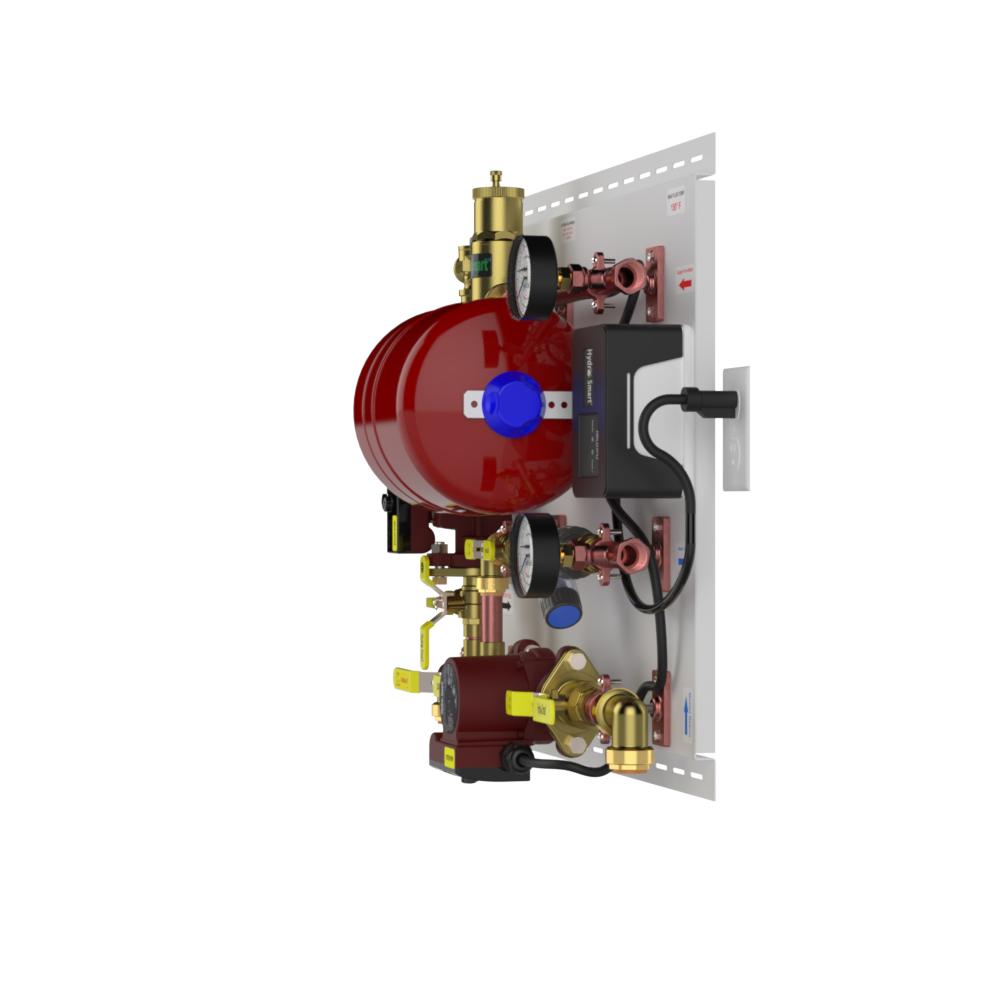

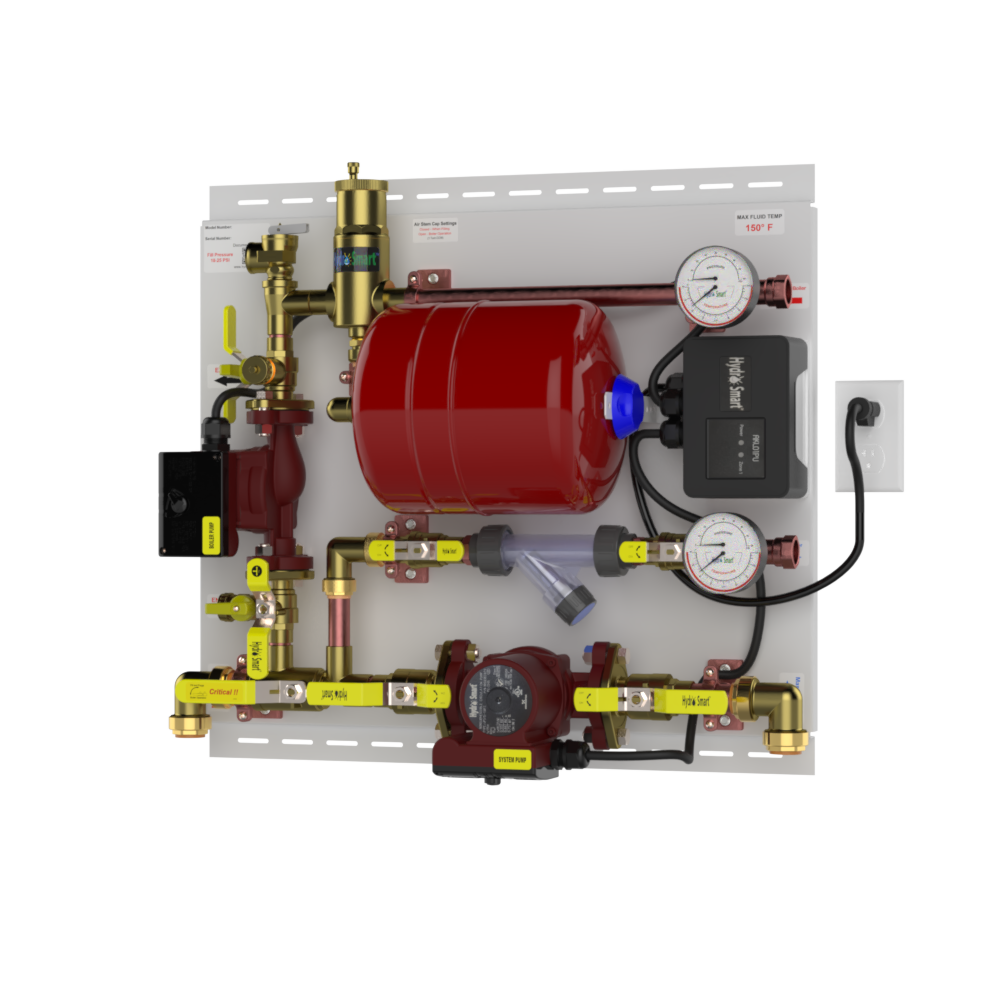

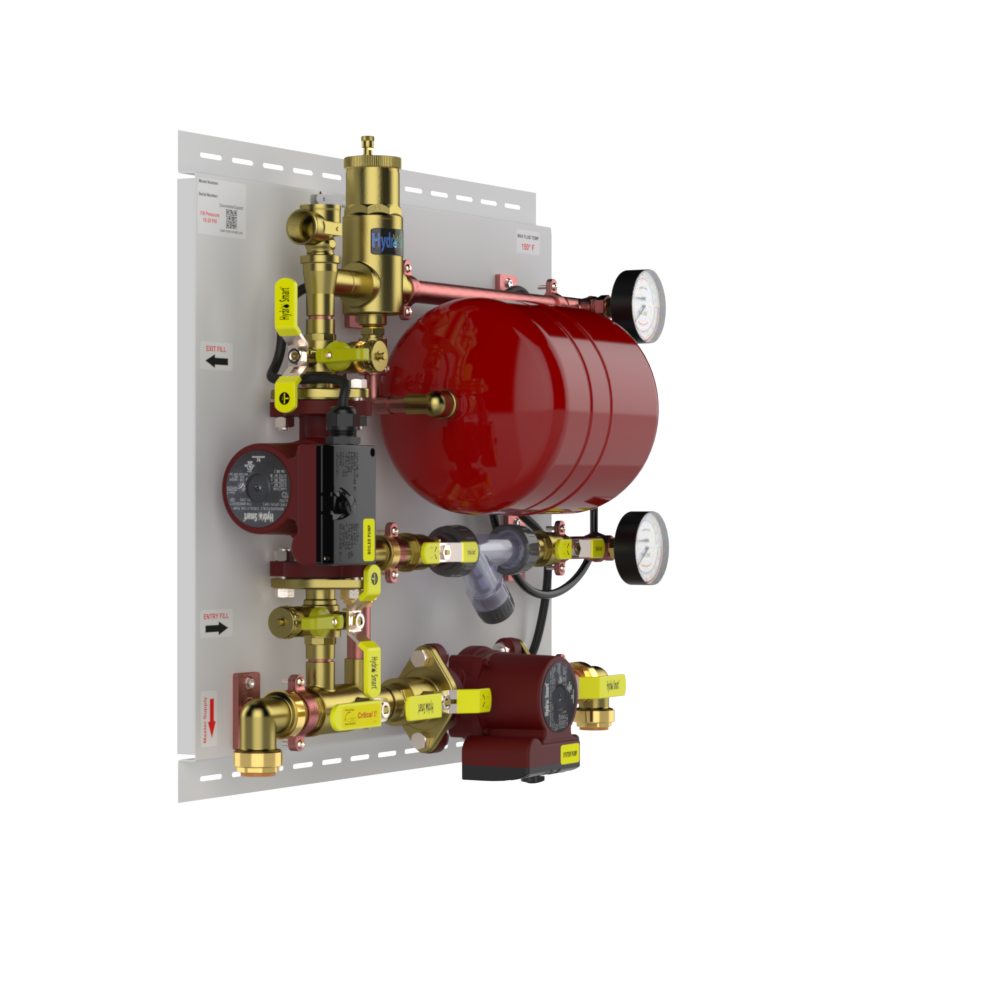

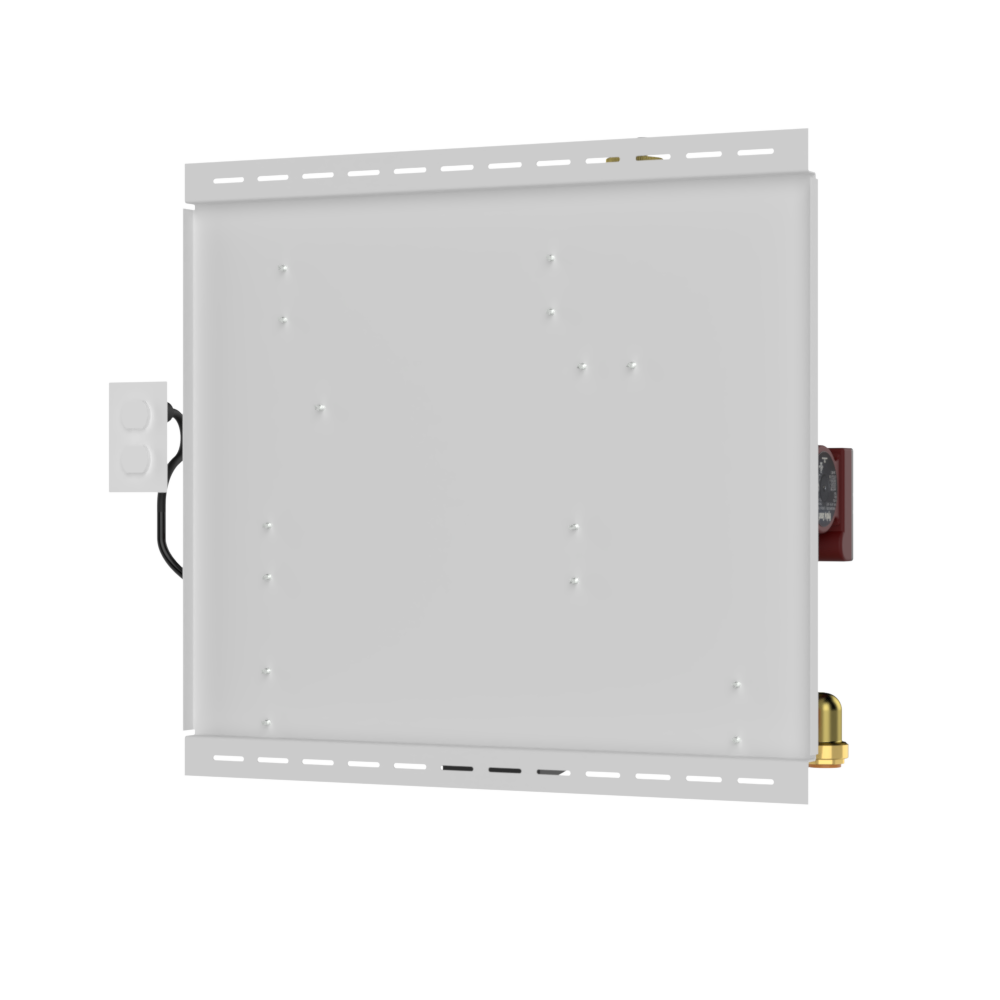

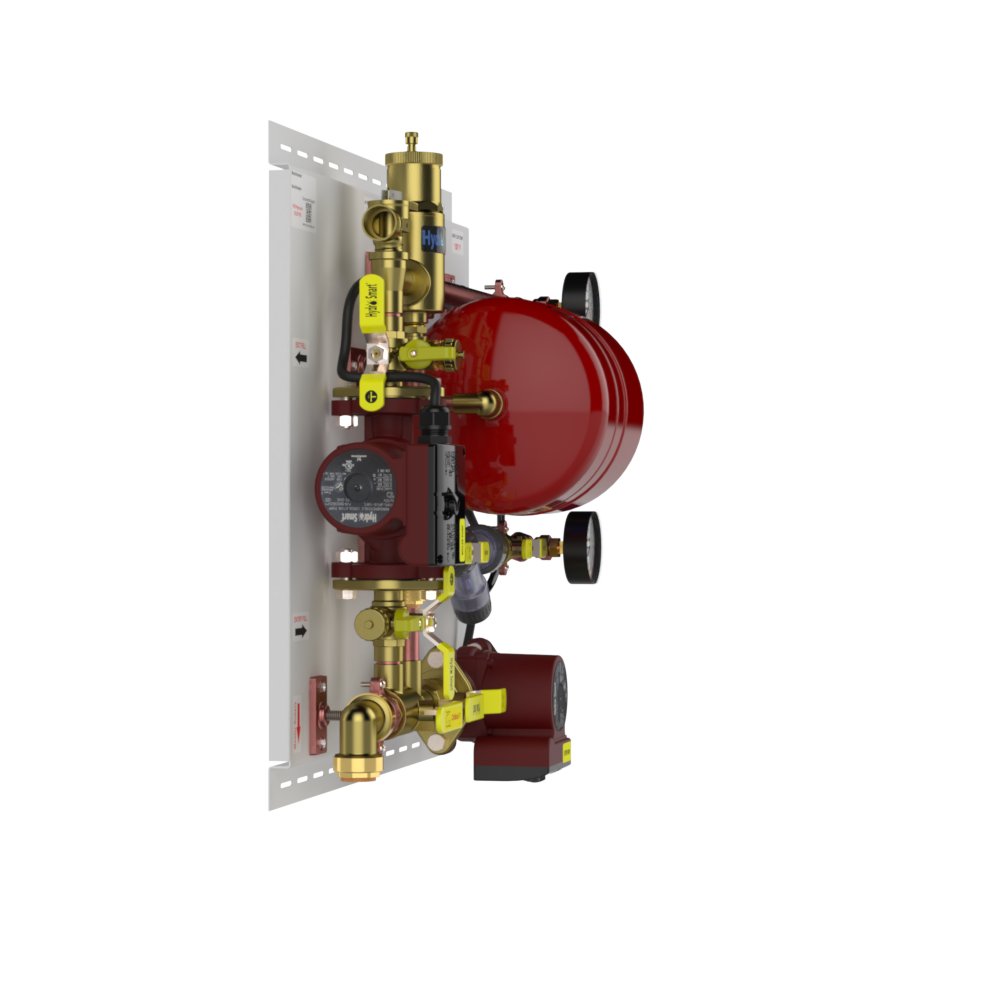

The HSPS120LT is a one zone, low temperature integrator panel for radiant heat. This panel is designed for Tubing In Concrete emitters such as Embedded Concrete or Staple Down/Pour Over. It features Primary/Secondary plumbing, expansion tank, clear y-strainer, supply and return pressure/temperature gauges, and other components necessary to ensure your system runs smoothly.
Features:
Sample System Views
One Zone System
HS115Plus Gas Boiler w/ HSPS120LT Master Panel
# of Zones/Tstats: 1
Max Water Temp: 140° F
Max BTU's: 120,000

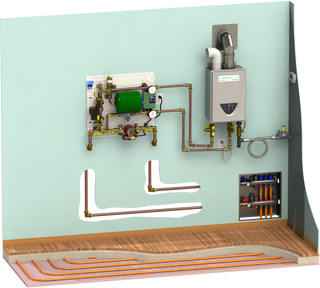

One Zone System
HS120Con Gas Boiler w/ HSPS120LT Master Panel
# of Zones/Tstats: 1
Max Water Temp: 140° F
Max BTU's: 120,000
One Zone System
Hydro Shark Electric Boiler w/ HSPS120LT Master Panel
# of Zones/Tstats: 1
Max Water Temp: 140° F
Max BTU's: 120,000
Zoning Panels
A Zoning Panel is NOT required for One Zone Panels
Compatible Boilers
Low Temperature Condensing Gas Boiler - LP
HS120Con Gas Boiler - LP
Max Temp: 140° F
Max BTU's: 120,000
Energy Factor: 93%
Low Temperature Condensing Gas Boiler - NG
HS120Con Gas Boiler - NG
Max Temp: 140° F
Max BTU's: 120,000
Energy Factor: 93%
Low Temperature Gas Boiler
HS115Plus Gas Boiler
Max Temp: 140° F
Max BTU's: 120,000
Energy Factor: 82%
7kW Electric Boiler

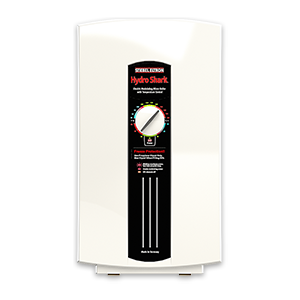

Hydro Shark 7KW Electric Boiler
Max Temp: 140° F
Max BTU's: 120,000
Energy Factor: 100%
10kW Electric Boiler

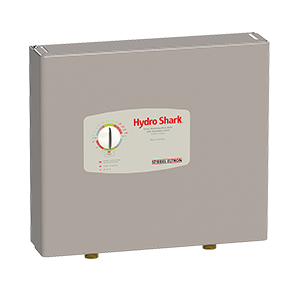

Hydro Shark 10KW Electric Boiler
Max Temp: 140° F
Max BTU's: 120,000
Energy Factor: 100%
12kW Electric Boiler
Hydro Shark 12KW Electric Boiler
Max Temp: 140° F
Max BTU's: 120,000
Energy Factor: 100%
14 kW Electric Boiler
Hydro Shark 14KW Electric Boiler
Max Temp: 140° F
Max BTU's: 120,000
Energy Factor: 100%
19kW Electric Boiler
Hydro Shark 19KW Electric Boiler
Max Temp: 140° F
Max BTU's: 120,000
Energy Factor: 100%
24kW Electric Boiler
Hydro Shark 24KW Electric Boiler
Max Temp: 140° F
Max BTU's: 120,000
Energy Factor: 100%
29kW Electric Boiler
Hydro Shark 29KW Electric Boiler
Max Temp: 140° F
Max BTU's: 120,000
Energy Factor: 100%
36kW Electric Boiler
Hydro Shark 36KW Electric Boiler
Max Temp: 140° F
Max BTU's: 120,000
Energy Factor: 100%
