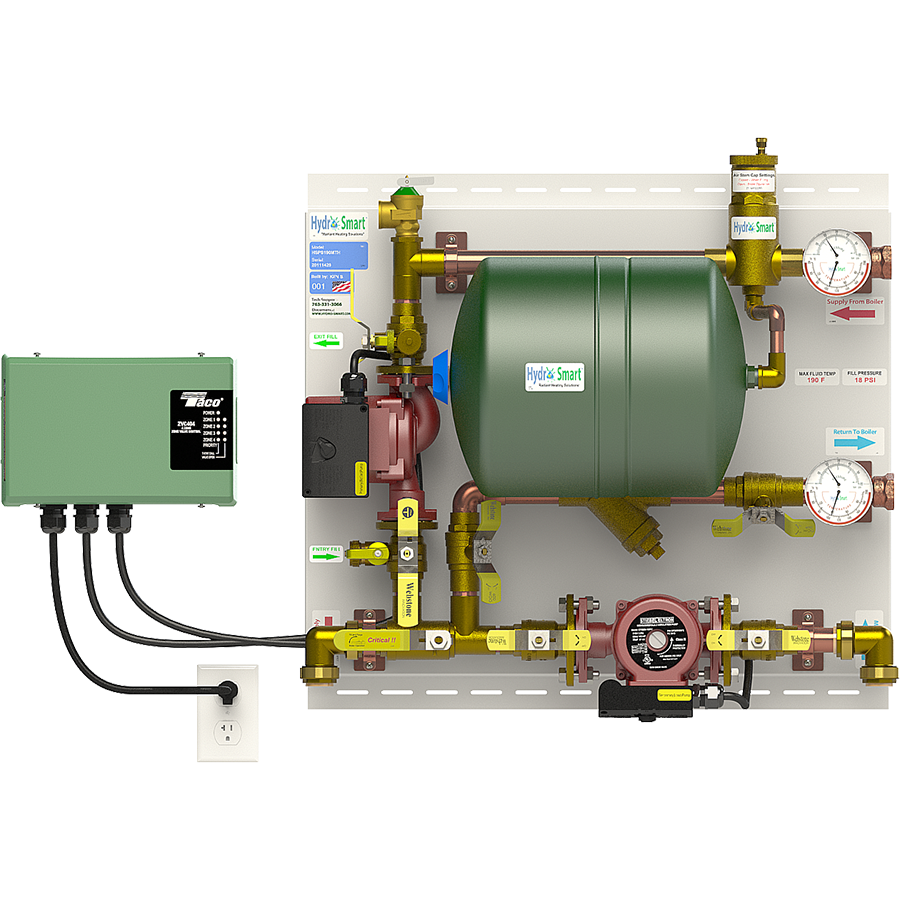

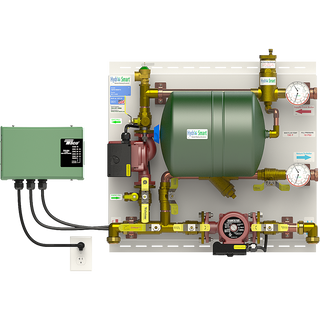

High Temp Zone by Actuator Master Panel
The Master Zone By Actuator is utilized 1-4 thermostat zones are required in the system. The panel extracts the heated fluid from the boiler and processes the heated fluid to the Emitter Circuit. Boiler and Emitter circuits have hydraulic separation for independent flow adjustments.
This panel requires actuators on your manifold for zoning
For use with 1 emitter type and 1 water delivery temperature

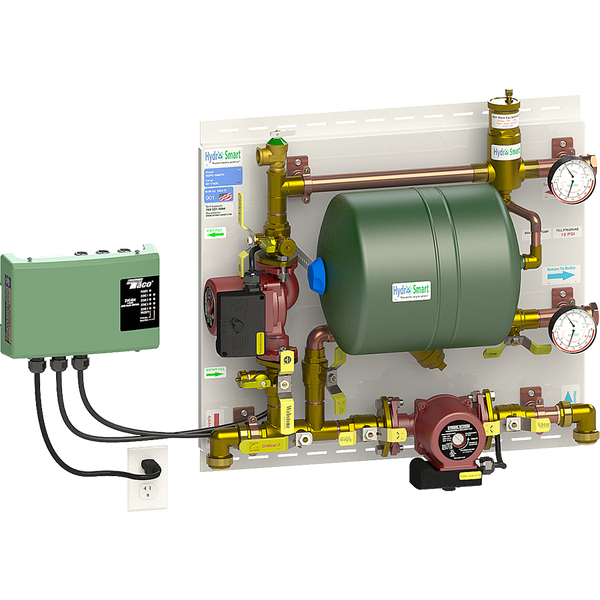

HSPS190MTH - Zone by Actuator Master Panel
divider
2-4
Number of Thermostats
190° F
Max Water Temperature
190,000
Max BTU's
divider
Energy Factor: 95%

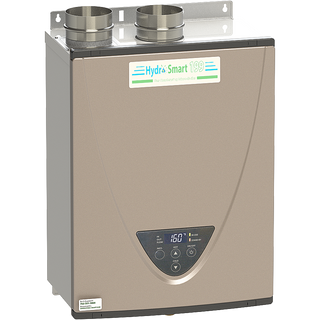

High Temperature Gas Boiler - Liquid Propane
Energy Factor: 95%
High Temperature Condensing Gas Boiler - Natural Gas
