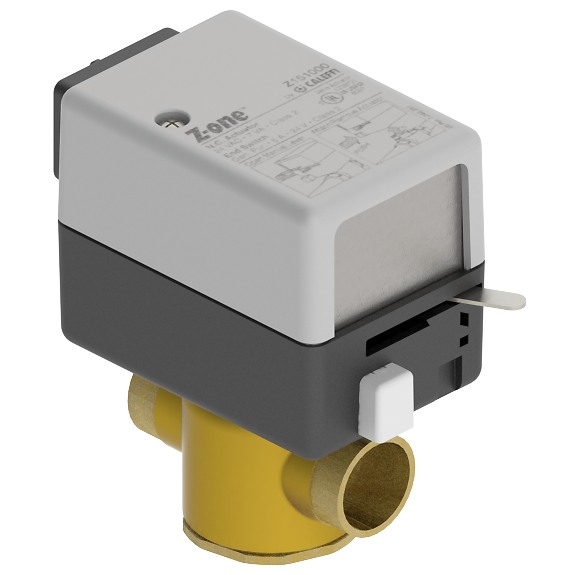

Z56 Z-one 2-Way Motorized Zone Valve

SKU: Z56
SKU: Z55
$141.75 USD

2-way motorized zone valve (with screw terminal connection)
1" Sweat
Normally closed actuator: Z151000
Spring return
Auxiliary micro-switch
With auxiliary microswitch
  • Non-Returnable

• Maximum operating pressure: 300 psi
• Fluid temperature range: 32–240 °F
• Electric supply: 24 V AC
• Power consumption at full capacity: 7 VA
• Auxiliary microswitch contact rating (24V): 0.4 A
• Maximum glycol %: 50 %
• Medium: water, glycol solutions, vapor (max. 15 psi)
