A one zone system is used when you only want to control the heat in your space with one thermostat and have one water delivery temperature. One emitter style is permitted within this system. Low temperature boilers will utilize the Tubing-In-Concrete emitter while the high temperature boilers can utilize all emitter options.
A one zone system is used when you only want to control the heat in your space with one thermostat and have one water delivery temperature.
One emitter style is permitted within this system. Low temperature boilers will utilize the Tubing-In-Concrete emitter while the high temperature boilers can utilize all emitter options.

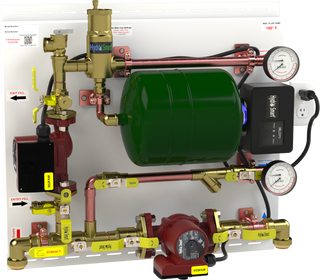

The Master Valve Panel is utilized when 2 to 4 thermostat zones are required in the system. The panel extracts the heated fluid from the boiler and processes the heated fluid to the Emitter Circuit. Boiler and Emitter circuits have hydraulic separation for independent flow adjustments.
This system is used with a high temperature boiler and tubing-in-concrete, staple up, baseboard and radiator emitters.
Pair with a valve zoning panel based on the number of zones and water delivery temperatures needed.
The Master Actuator Panel is utilized when 2 to 4 thermostat zones are required in the system. The panel extracts the heated fluid from the boiler and processes the heated fluid to the Emitter Circuit. Boiler and Emitter circuits have hydraulic separation for independent flow adjustments.
This system is used with a high temperature boiler and tubing-in-concrete, staple up, baseboard and radiator emitters.
No zoning panels needed as the zones are controlled by the actuators located on the manifolds.
