CMPump-100-S-XXXX-XXXX-Ruud Zone by Pumps Master Panel
Description

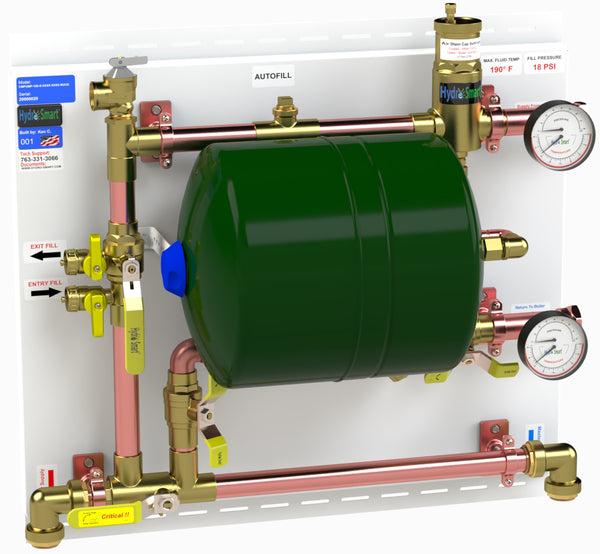

The CMPump-100-S-XXXX-XXXX-Ruud is a multi zone, high temperature integrator panel for radiant heat when zoning by pumps. This panel is designed for Tubing In Concrete emitters such as Embedded Concrete or Staple Down/Pour Over, Baseboard, Radiators, or Staple Up. It features Primary/Secondary plumbing, expansion tank, brass y-strainer, supply and return pressure/temperature gauges, and other components necessary to ensure your system runs smoothly. This panel requires an additional Zoning By Zone Pumps-Zone Panel. This panel is to be used with the Ruud Combi Boilers only.
Features

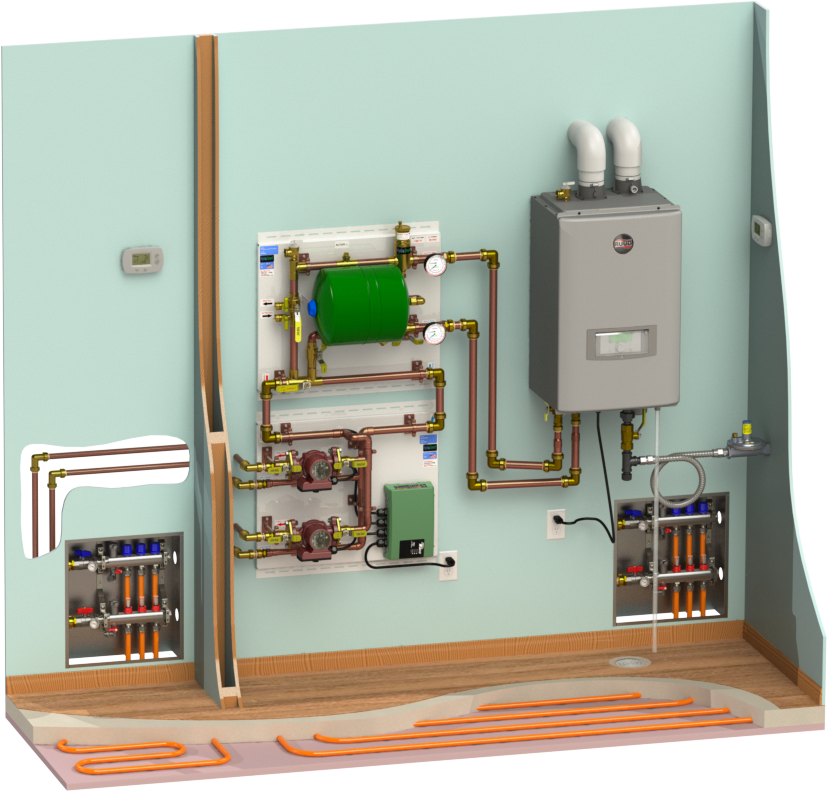

Sample System Views
Required Zoning Panels
Select the appropriate zoning panel based on the number of zones and water delivery temperatures your system will have. NOTE: 2 different emitters require 2 water delivery temperature zone panels.
ZONING BY PUMP ZONE PANEL
HS1T2ZPMP
Number of Thermostats/Zones: 2
Water Delivery Temp: 1
ZONING BY PUMP ZONE PANEL
HS1T3ZPMP
Number of Thermostats/Zones: 3
Water Delivery Temp: 1
ZONING BY PUMP ZONE PANEL
HS1T4ZPMP
Number of Thermostats/Zones: 4
Water Delivery Temp: 1
ZONING BY PUMP ZONE PANEL
HS2T2ZPMP
Number of Thermostats/Zones: 2
Water Delivery Temp: 2
ZONING BY PUMP ZONE PANEL
HS2T3ZPMP
Number of Thermostats/Zones: 3
Water Delivery Temp: 2
ZONING BY PUMP ZONE PANEL
HS2T4ZPMP
Number of Thermostats/Zones: 4
Water Delivery Temp: 2
