HS2T3ZPMP - 2 Temp, 3 Zone by Pump Zoning Panel

sku: 665-1201

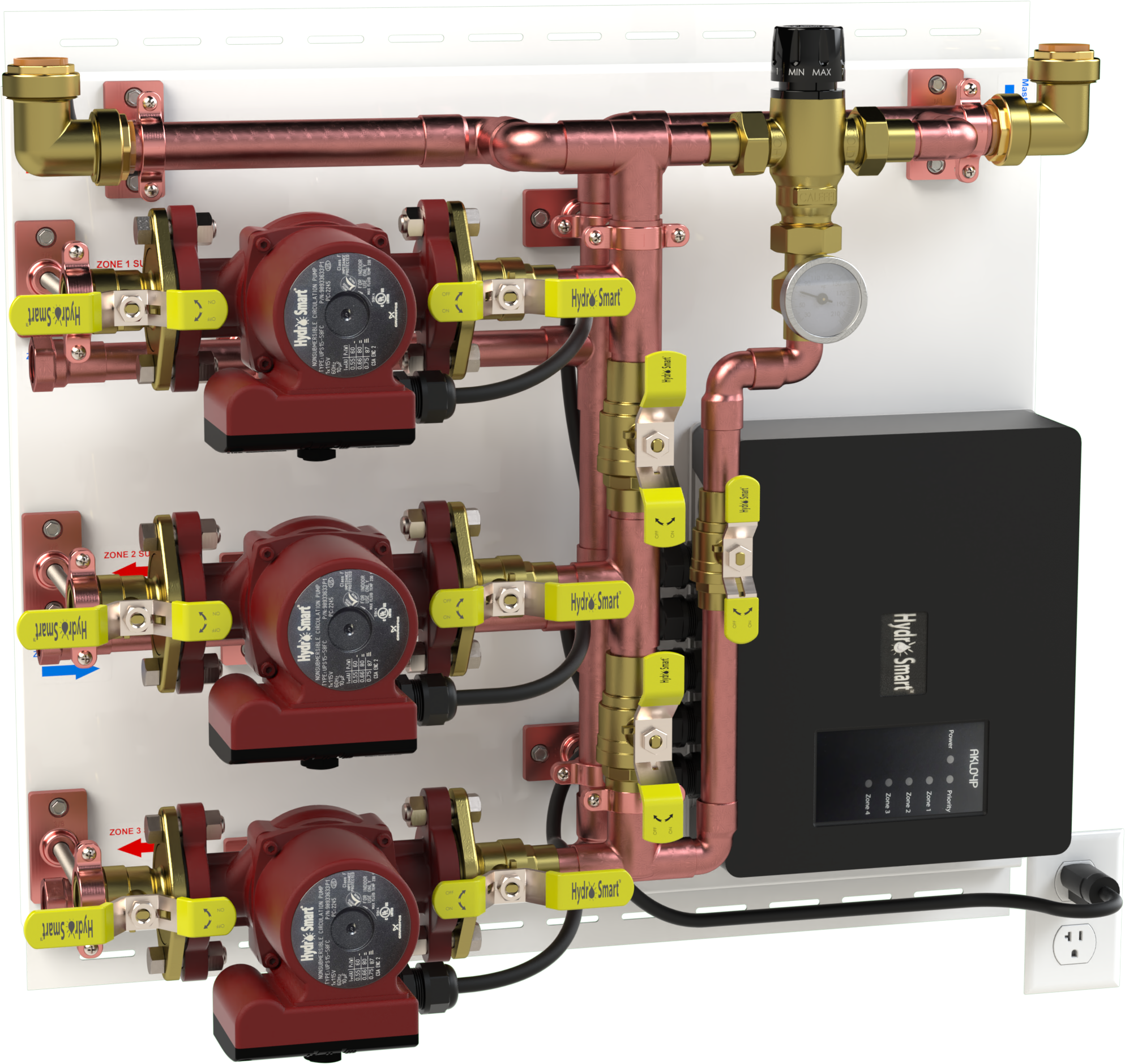

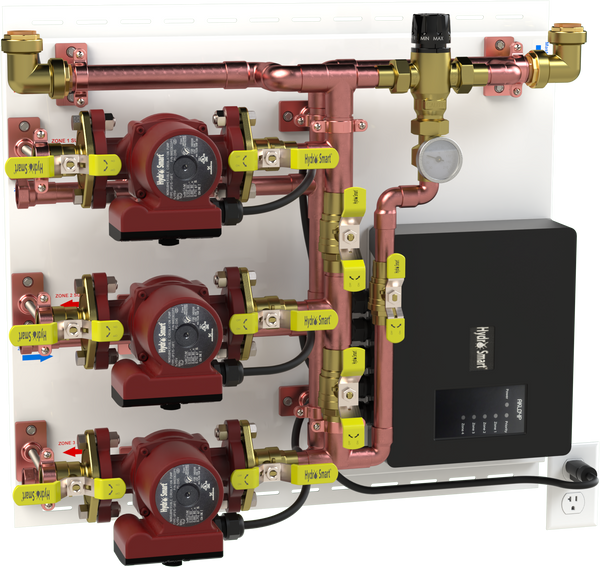

The HS2T3ZPMP is a 2 Water Delivery Temperature, 3 Zone by Pumps Zone Panel. This panel can be used with the HSPS120MPH, HSPS190MPH, HSPS150MPH-HTP integrator panels or the HSBP6W-HS115-MPH Boiler Pro integrator panel. This panel is designed to be used when you have two different emitter types that require two different water delivery temperatures. For example, Tubing in Concrete emitters should never go above 130° while baseboard usually requires 145°-160°. If you had BOTH of these emitters, you would need a 2 Temp Panel. This panel requires 3 thermostats, 1 for each zone.

divider

Features

• Must be installed with a master radiant heat integrator panel
• 3 speed zoning pump
• 3/4" FPT supply to emitter
• 3/4" FPT return from emitter
• 1" FPT supply from master radiant heat integrator panel
• 1" FPT return to master radiant heat integrator panel
• Cord to connect to primary pump on master radiant heat integrator panel
• 10' cord with plug
• Temperature gauge to aid in mixing
• This item is not for sale to these Provinces, States, or Territories: AK, HI
