HSPS190LT - One Zone Master Panel

SKU: 665-0905
One Zone
Low Temp
# of Zones/T'stats: 1

Description

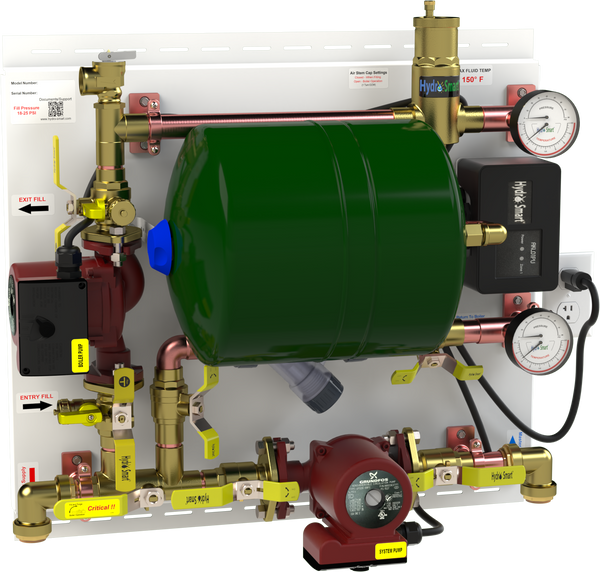

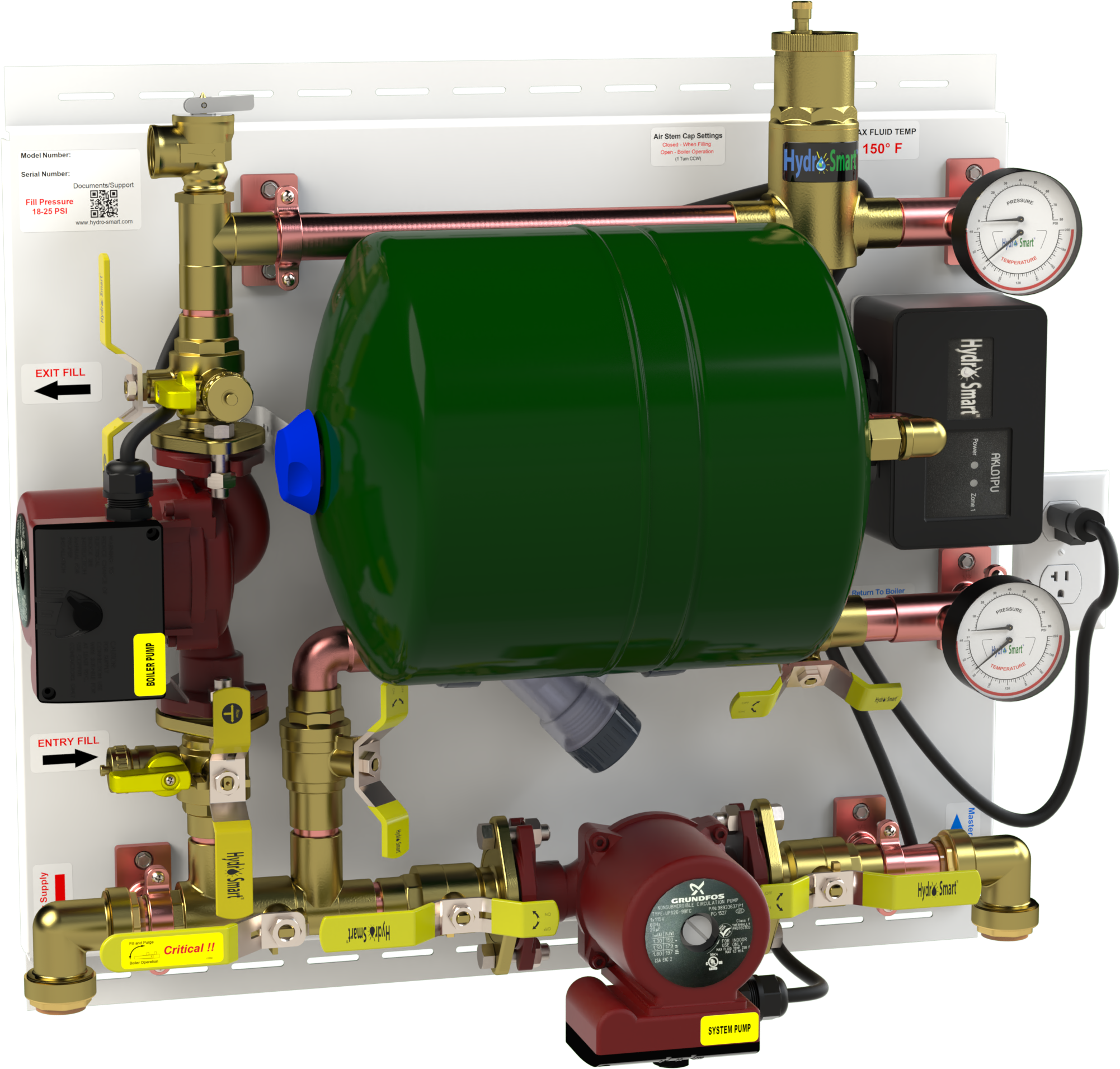

The HSPS190LT is a one zone, low temperature integrator panel for radiant heat. This panel is designed for Tubing In Concrete emitters such as Embedded Concrete or Staple Down/Pour Over. It features Primary/Secondary plumbing, expansion tank, brass y-strainer, supply and return pressure/temperature gauges, and other components necessary to ensure your system runs smoothly.

Features:

• Lifetime Tech Support
• Y-Strainer Isolators
• Hydraulic Separation Between Boiler and Emitter Circuits
• Precision Solder Joints
• Pressure Tested Solder Joints
• Clear Coat Over Copper
• 1-Year Limited Warranty
• Easy Access to All Major Components
• Quick Installation - Save 9+ Hours of Installation
• Works with more than 30+ Boilers - Gas & Electric
• 10 Ft. Power Cord

You may also like

Sample System Views

Zoning Panels

A Zoning Panel is NOT required for One Zone Panels

Compatible Boilers

High Temperature Condensing Gas Boiler - Liquid Propane

HS199Con Gas Boiler - LP


Max Temp: 160° F
Max BTU's: 190,000
Energy Factor: 95%

High Temperature Condensing Gas Boiler - Natural Gas

HS199Con Gas Boiler - NG


Max Temp: 160° F
Max BTU's: 190,000
Energy Factor: 95%
