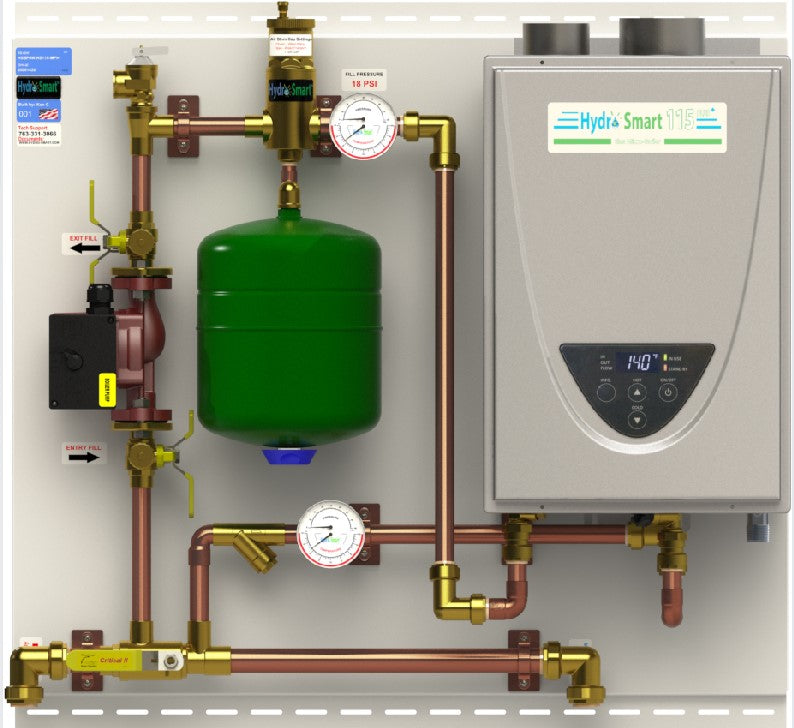

HS115Plus Boiler Pro Panel 120MPH Zone by Pump
SKU: HSBP6W-115NG-120HT
Energy Factor: 82%
Non-Condensing
Description
The Hydro-Smart Boiler Pro Panel is a compact and unified heating system that combines the boiler and its control components on a single mounted panel. This setup is designed for ease of installation, operation, and maintenance.
Advantages of a Unified Panel System:
-
Space-Saving: Everything is pre-assembled on a single panel, reducing installation footprint.
-
Ease of Installation: Simplifies plumbing and electrical connections, minimizing labor time.
-
Improved Maintenance: All critical components are in one accessible location, making troubleshooting and servicing easier.
-
Enhanced Safety & Efficiency: Integrated controls optimize operation, prevent malfunctions, and improve energy efficiency.
Compatible Emitters
Features
Boiler
• Copper Heat Exchanger
• Flow Activated - .75 GPM

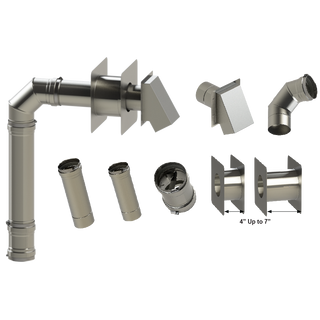

• 4” Cat III Stainless Steel Venting
• Power Vent
• Wall Hung
• Freeze Protection
• No Pilot Light
• LP Conversion Kit Included
Panel
• Lifetime Tech Support
• Y-Strainer Isolators
• Brass Y-Strainer
• Hydraulic Separation Between Boiler and Emitter Circuits
• Precision Solder Joints
• Pressure Tested Solder Joints
• Clear Coat Over Copper
• 1-Year Limited Warranty
• Easy Access to All Major Components
• Quick Installation - Save 9+ Hours of Installation
• 10 Ft. Power Cord
Required Zoning Panels
Select the appropriate zoning panel based on the number of zones and water delivery temperatures your system will have. NOTE: 2 different emitters require 2 water delivery temperature zone panels.
ZONING BY PUMP ZONE PANEL
HS1T2ZPMP
# of Thermostats/Zones: 2Water Delivery Temp: 1
ZONING BY PUMP ZONE PANEL
HS1T3ZPMP
# of Thermostats/Zones: 3Water Delivery Temp: 1
ZONING BY PUMP ZONE PANEL
HS1T4ZPMP
# of Thermostats/Zones: 4Water Delivery Temp: 1
ZONING BY PUMP ZONE PANEL
HS2T2ZPMP
# of Thermostats/Zones: 2Water Delivery Temp: 2
ZONING BY PUMP ZONE PANEL
HS2T3ZPMP
# of Thermostats/Zones: 3Water Delivery Temp: 2
ZONING BY PUMP ZONE PANEL
HS2T4ZPMP
# of Thermostats/Zones: 4Water Delivery Temp: 2
Each unit when installed and operated per the installation instructions has a 2-year warranty covering all parts and the heat exchanger. See manufacturer warranty for full details. Each Hydro Smart Integrator Panel, when installed and operated per the installation instructions, has a 1 year warranty covering all parts. No labor allowances. See manufacturer warranty for full details.
Micro-Boilers & Hydro Smart Integrator Panels sold separately. Guide is based on insulating to a R19 in walls, R38 in ceilings, maximum 12 ft. sidewalls, with 2” of extruded styrene insulation around perimeter & under slab emitter and/or 3-1/2” of fiberglass insulation for staple up emitter. For more accurate sizing, a BTU heat loss of the heated space should be considered.
ALWAYS CHECK WITH & FOLLOW LOCAL CODES
