HSPS120MPL - Zone By Pump Master Panel – Hydro-Smart

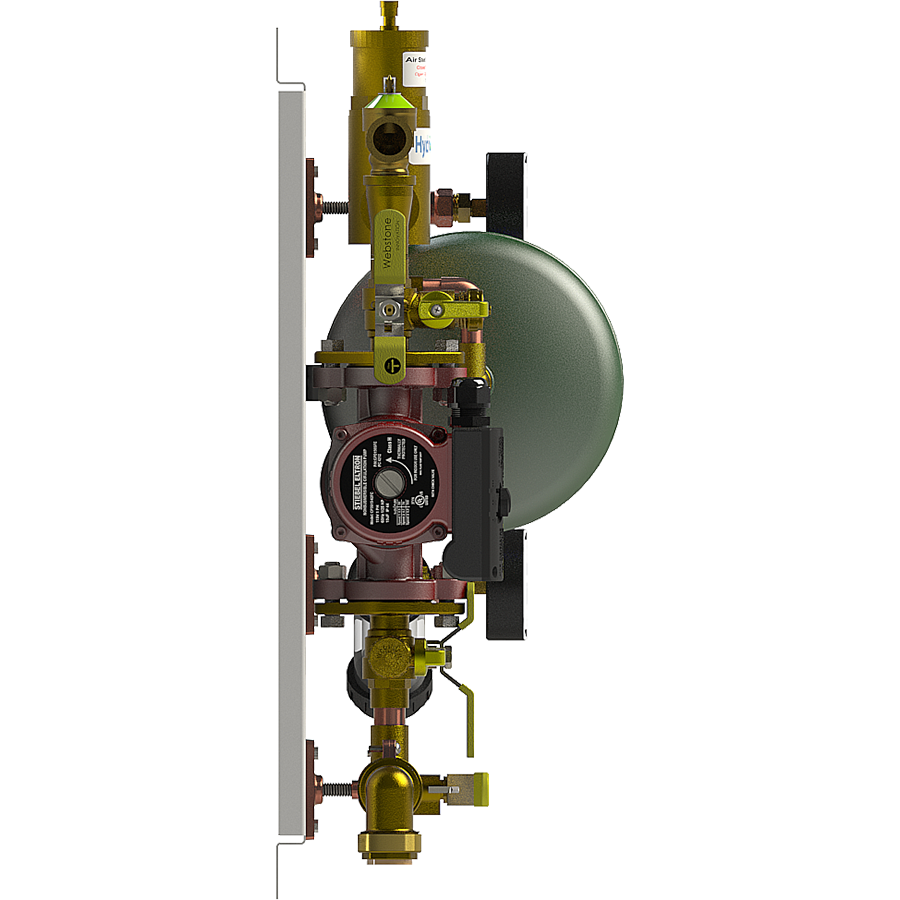

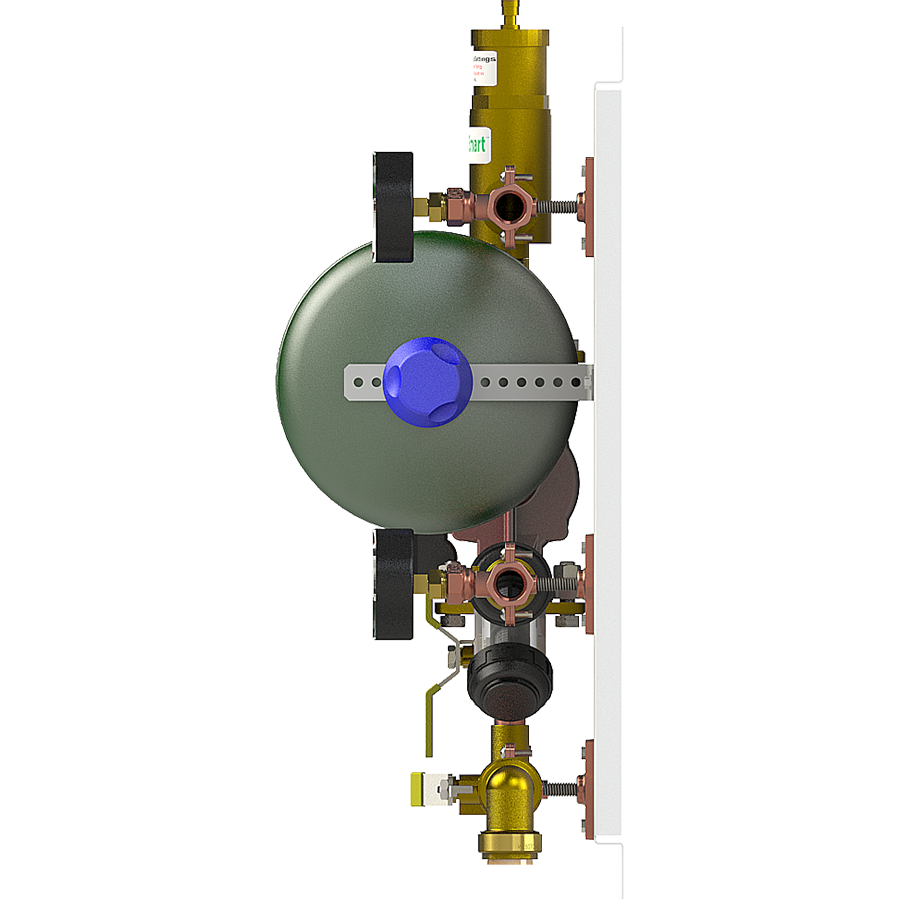

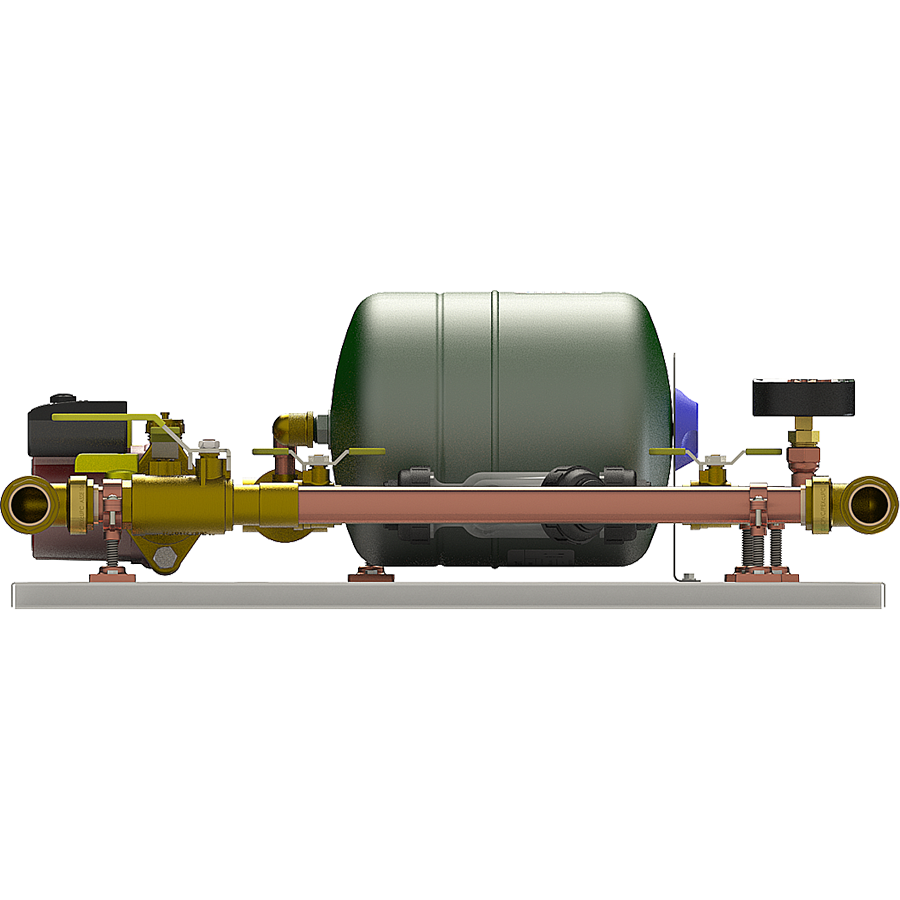

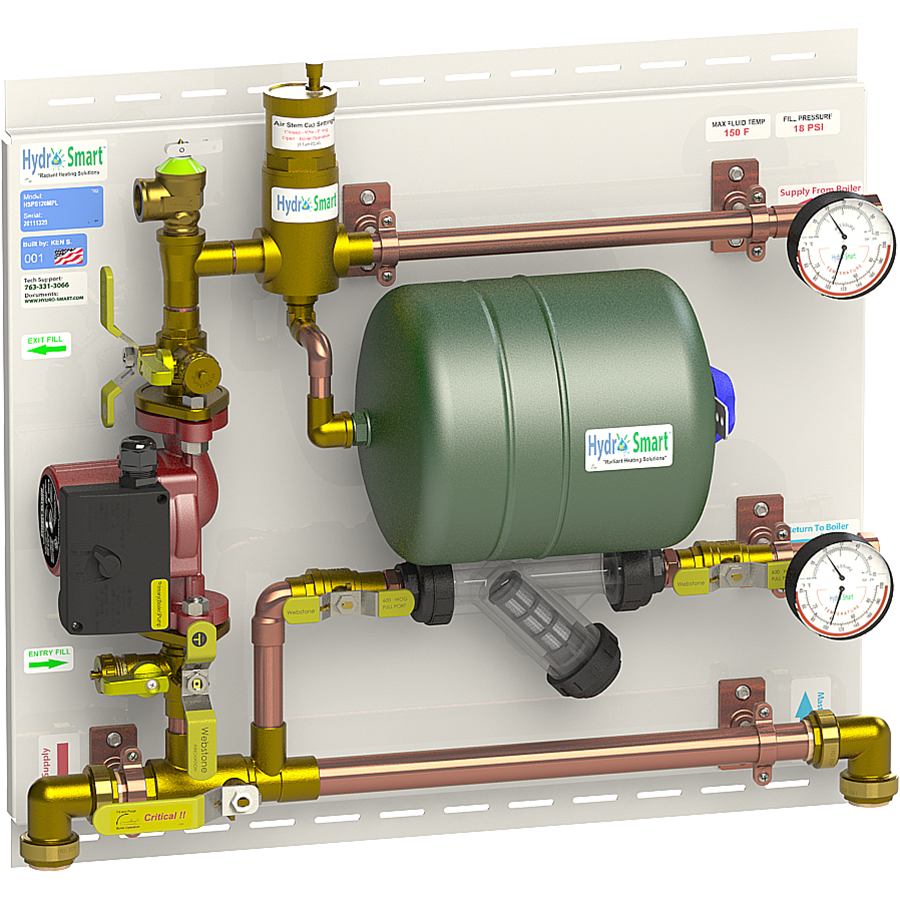

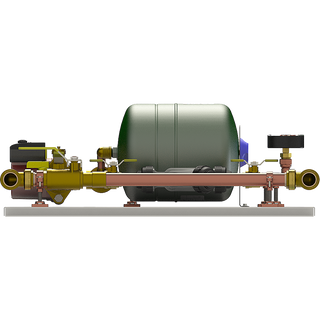

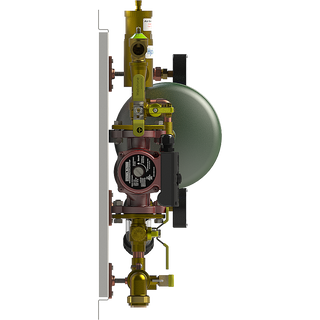

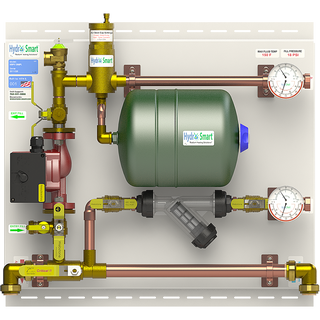

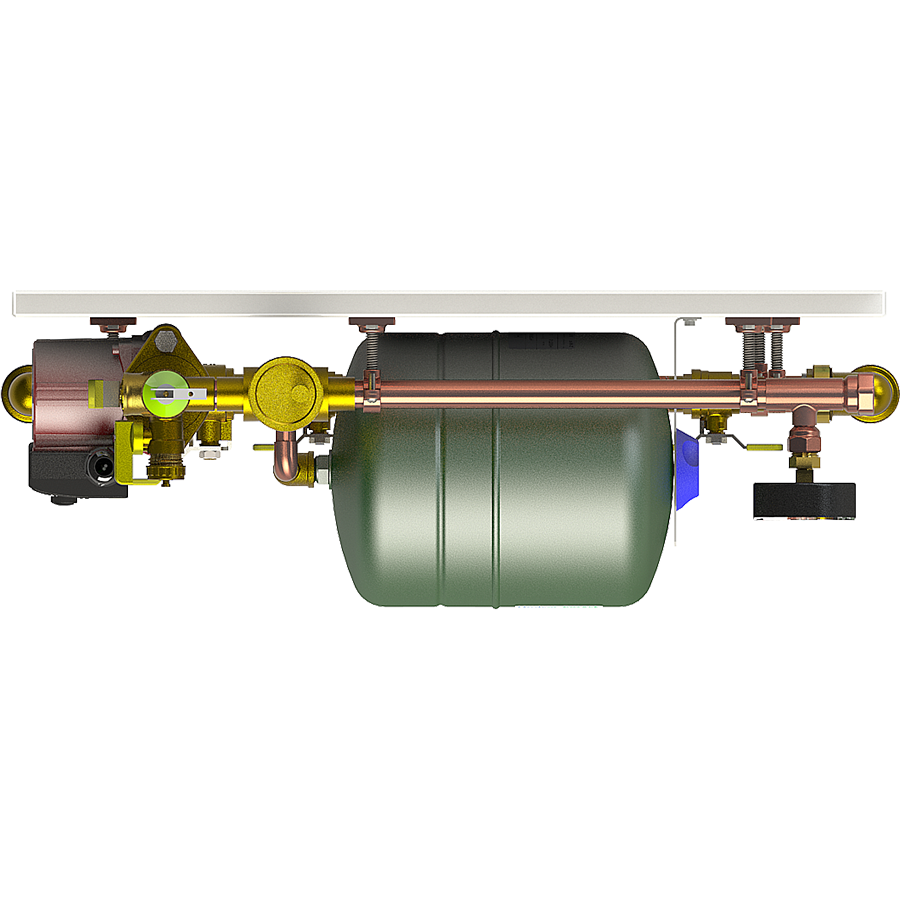

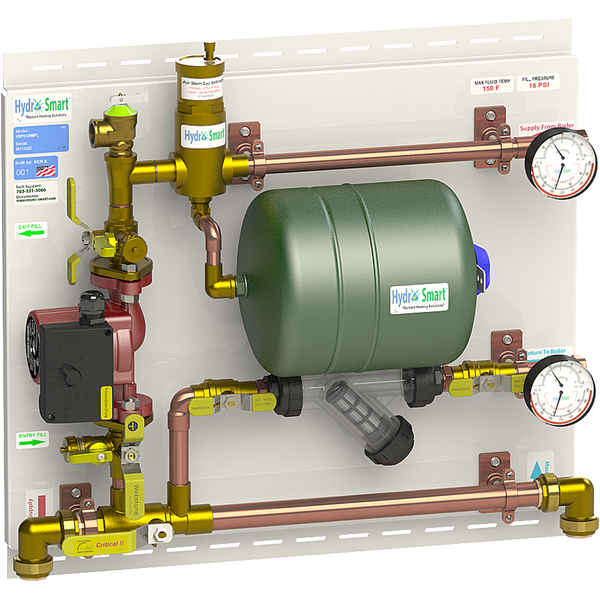

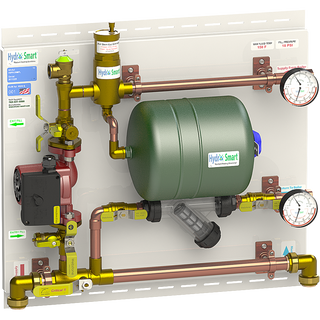

The HSPS120MPL is a multi-zone, low-temperature integrator panel for radiant heat when zoning by pumps. This panel is designed for Tubing-In Concrete emitters such as Embedded Concrete or Staple Down/Pour Over. It features Primary/Secondary plumbing, an expansion tank, a clear y-strainer, supply and return pressure/temperature gauges, and other components necessary to ensure your system runs smoothly. This panel requires an additional Zoning By Pumps-Zone Panel.

HSPS120MPL - Zone By Pump Master Panel

sku: 665-1150

divider

Features

• Pre-assembled panels are ideal for fast, clean installations and are engineered to install easily
• For use with low-temperature emitters such as tubing in concrete or underfloor
• Inlet and outlet thermometers for easy fluid temperature control
• Primary/Secondary pump design is ideal for use with microboilers
• Fill/purge connections for easy initial setup and maintenance
• Styles may vary
• Not for use with tank style or tankless water heaters
• Pre-engineered, preassembled, and prewired
• This item is not for sale to these Provinces, States, or Territories: AK, HI

Required Zoning Panels

Select the appropriate zoning panel based on the number of zones your system will have.

ZONING BY PUMP ZONE PANEL - 2 Zone / 1 WD

Water Delivery Temperature: 1

# Zones: 2
# of Thermostats: 2

View Zoning Panel

ZONING BY PUMP ZONE PANEL - 3 Zone / 1 WD

Water Delivery Temperature: 1

# Zones: 3
# of Thermostats: 3

View Zoning Panel

ZONING BY PUMP ZONE PANEL - 4 Zone / 1 WD

Water Delivery Temperature: 1

# Zones: 4
# of Thermostats: 4

View Zoning Panel

Compatible Boilers

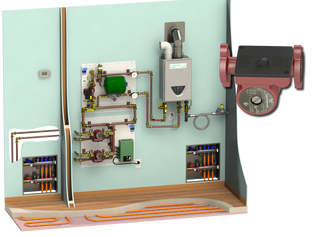

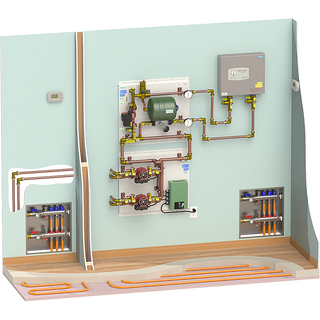

Pair your Master Panel with one of these compatible boilers to create the perfect hydronic radiant heating system for your space.

HS115Plus Gas Boiler

Low Temperature Gas Boiler
Energy Factor: 82%

View Boiler Info

HS120Con Gas Boiler - NG

Low Temperature Condensing Gas Boiler - NG
Energy Factor: 93%

View Boiler Info

HS120Con Gas Boiler - LP

Low Temperature Condensing Gas Boiler - LP
Energy Factor: 93%

View Boiler Info

Hydro Shark 7KW Electric Boiler

7kW Electric Boiler
Energy Factor: 100%

View Boiler Info

Hydro Shark 10KW Electric Boiler

10kW Electric Boiler
Energy Factor: 100%

View Boiler Info

Hydro Shark 12KW Electric Boiler

12kW Electric Boiler
Energy Factor: 100%

View Boiler Info

Hydro Shark 14KW Electric Boiler

14 kW Electric Boiler
Energy Factor: 100%

View Boiler Info

Hydro Shark 19KW Electric Boiler

19kW Electric Boiler
Energy Factor: 100%

View Boiler Info

Hydro Shark 24KW Electric Boiler

24kW Electric Boiler
Energy Factor: 100%

View Boiler Info

Hydro Shark 29KW Electric Boiler

29kW Electric Boiler
Energy Factor: 100%

View Boiler Info

Hydro Shark 36KW Electric Boiler

36kW Electric Boiler
Energy Factor: 100%

View Boiler Info
