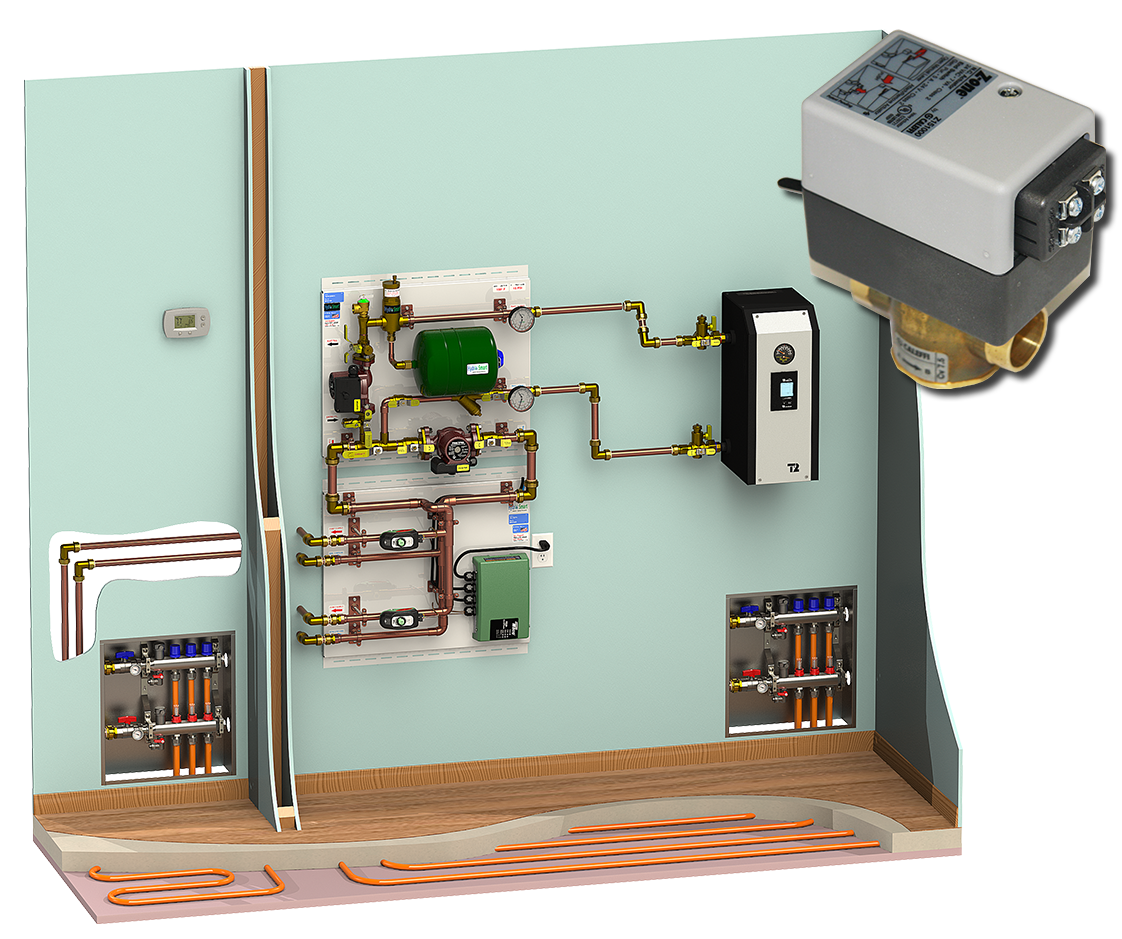

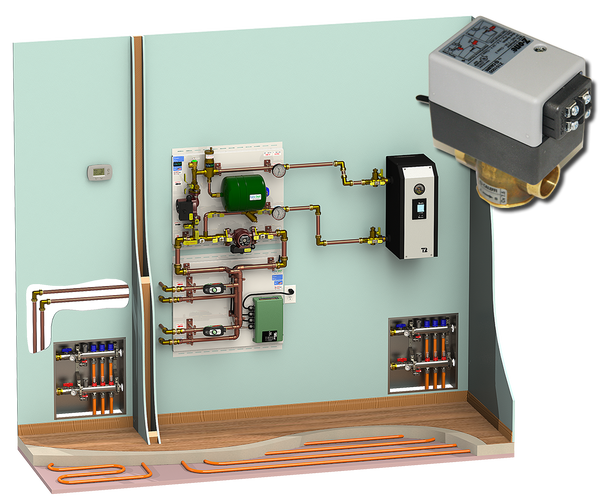

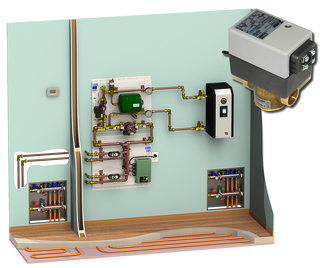

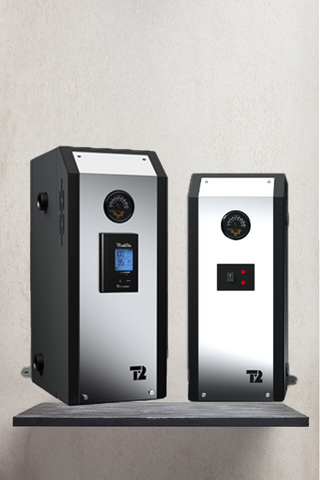

Thermo 2000 Electric Boiler w/ HSPS120MZH Master Panel and Zoning Panel
Zone by Valve
The Master Valve Panel is utilized when 2 to 4 thermostat zones are required in the system. The panel extracts the heated fluid from the boiler and processes the heated fluid to the Emitter Circuit. Boiler and Emitter circuits have hydraulic separation for independent flow adjustments.
This system is used with a high temperature boiler and tubing-in-concrete, staple up, baseboard and radiator emitters.
Pair with a valve zoning panel based on the number of zones and water delivery temperatures needed.
2-4
Number of Thermostats
190° F
Max Water Temperature
120,000
Max BTU's
High Temperature
Zone by Valve Master Panel

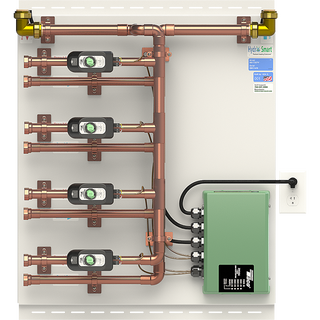

Zoning by Valve Panel

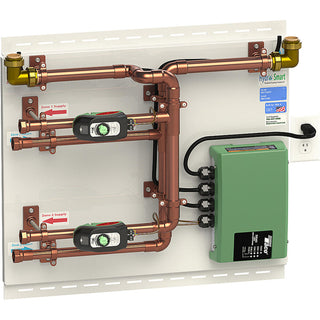

2 Zone / 1 Water Delivery Temperature
Zoning by Valve Panel

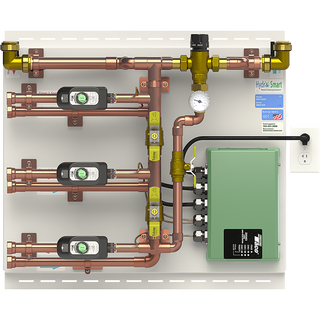

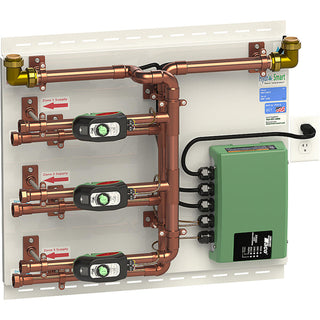

3 Zone / 1 Water Delivery Temperature
Zoning by Valve Panel

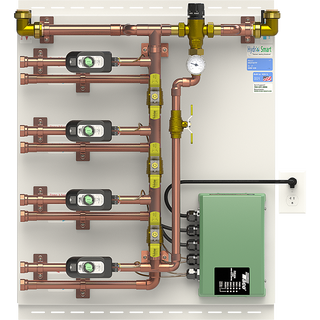

4 Zone / 1 Water Delivery Temperature

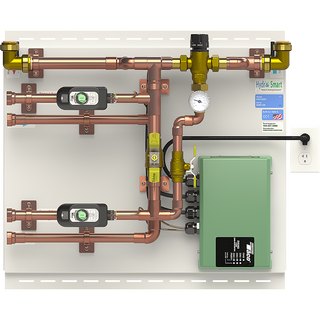

Zoning by Valve Panel
2 Zone / 2 Water Delivery Temperature
Zoning by Valve Panel
3 Zone / 2 Water Delivery Temperature
Zoning by Valve Panel
4 Zone / 2 Water Delivery Temperature
