HS115Plus Zone by Valve

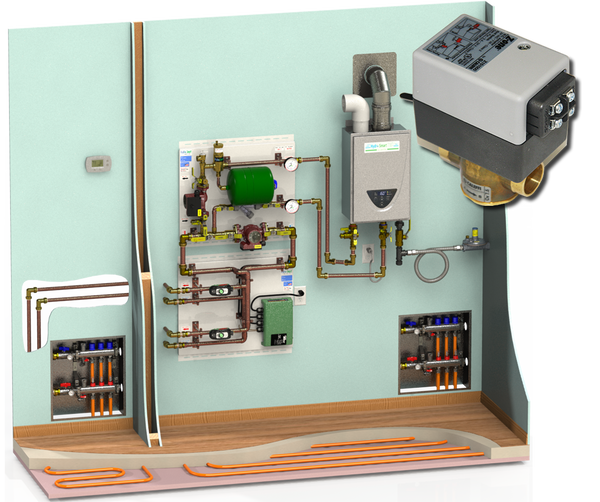

HS115Plus Gas Boiler w/ HSPS120MZL Master Panel and Zoning Panel
Zone by Valve
With Manifold, Tubing-in-Concrete Emitter and Thermostat.
divider
The Master Pump Panel is utilized when 2 to 4 thermostat zones are required in the system. The panel extracts the heated fluid from the boiler and processes the heated fluid to the Emitter Circuit. Boiler and Emitter circuits have hydraulic separation for independent flow adjustments.
This system is used with a low temperature boiler and tubing-in-concrete emitter.
Pair with a pump zoning panel based on the number of zones needed.
divider
![](http://www.hydro-smart.com/cdn/shop/files/HSRadStatWifi-3.png?crop=center&height=40&v=1701361538&width=40)
2-4
Number of Thermostats
![](http://www.hydro-smart.com/cdn/shop/files/lowtemp_d44ea63b-6ed0-4d48-9cd2-a7c02a6ecf08.png?crop=center&height=40&v=1714496620&width=40)
140° F
Max Water Temperature
![](http://www.hydro-smart.com/cdn/shop/files/pngwing.com.png?crop=center&height=40&v=1712673877&width=40)
120,000
Max BTU's
Main System Components
![](http://www.hydro-smart.com/cdn/shop/files/HS115Plus_Portrait.png?v=1712685738&width=500)
![](http://www.hydro-smart.com/cdn/shop/files/HSPS120MZL_Front_900PX.png?v=1702395353&width=500)
![](http://www.hydro-smart.com/cdn/shop/files/HS1T2ZZV_ISO_900PX.jpg?v=1713986753&width=500)
![](http://www.hydro-smart.com/cdn/shop/files/HS1T3ZZV_ISO_900PX.jpg?v=1713986863&width=500)
![](http://www.hydro-smart.com/cdn/shop/files/HS1T4ZZV_Front_900PX.png?v=1703780464&width=500)
Finish your system
SPACE HEATING SIZING GUIDE
900 - 3000 SQ FT
50° F OPERATION
- Garage
- Post Frame Buildings
70° F OPERATION
- Whole House
- Basement
- Sunroom
- Garage
- Post Frame Buildings
