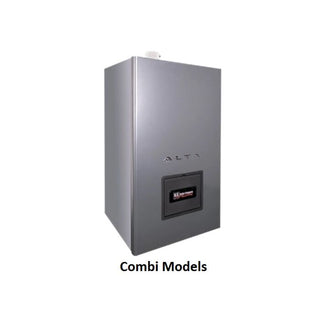

Burnham ALTAC-200-1G00 200MBH Combi Boiler

SKU: ALTAC-200-1G00
Max Temp: 190° F
Max BTU's: 200K
Energy Factor: 95%
Condensing
Price:
Regular price $3,672.26
Unit price
per
100% Secure payments

Your details are protected and safe with us.

Discover
Mastercard
Visa
(0 in cart)

Description

Gas-adaptive Technology

The Alta Combi high efficiency condensing boiler offers best in class, next-generation gas adaptive technology that provides the shortest installation time and lowest operating costs. The powerful gas-adaptive technology offers true “no touch” combustion setup. There are no manual throttle or offset adjustments. Engineered for five-minute start-up, the boiler’s control system provides continuous, automatic self-calibration of burner combustion by adapting to component wear, variations in fuel, environment, and vent air pressure to provide safe, efficient, and clean combustion at all times.

Features

Additional Alta Features

Converting from natural gas to LP is simple. No additional parts or conversion kits are needed. The Alta also includes a sensor-less reset, which performs the functions of a conventional outdoor reset without the need to install an outside sensor.

Domestic hot water response time is virtually instantaneous. Domestic hot water temperatures are maintained under all demand conditions, and the unit’s DHW recirculation system can be set to either economy or comfort mode.

At 95% AFUE, The Alta Combi is currently available with 136 MBH DHW input (3.7 GPM) / 120 MBH heating input. However, stay tuned! U.S. Boiler Company will be releasing a larger Alta Combi boiler (200 MBH DHW / 150 heating) and numerous heating-only Alta models (80, 120, 150 and 180 MBH) later this year.

Each Alta comes with value-added components and features, including an AltaFastPipe primary/secondary piping assembly, lift-away front and side panels for three-sided access, boiler flow safety switch (UL353) and display indicator, ProPress compatibility and a five-year parts warranty.

Compatible Emitters

Low Temperature Emitter

Tubing In Concrete

Learn More

High Temperature Emitter

Staple Up

Learn More

High Temperature Emitter

Radiator / Baseboard

Learn More

Compatible Master Panels

Install your system easily with our Hydro-Smart panels that are pre-wired, pre-plumbed and pressure tested.

Hydro-Smart Panels help make radiant heat Easy & Reliable

Constructed with top quality materials, including heavy duty type L copper pipe and a powder coated panel.

Engineered and proven panel design uses professional hydronic practices.

By working smarter not harder, a pre-assembled panel saves job site labor expense and time.

With nothing extra and nothing spared on each panel, every component is there to help ensure your system provides years of trouble free operation.

High Temp Master One Zone Panel

CM1ZN-100-S-XXXX-2699-Ruud

# of Zones/Thermostats: 1
Max Water Temperature: 190° F
Max BTU's: 190,000

High Temp Master Pump Panel

CMPump-100-S-XXXX-XXXX-Ruud

# of Zones/Thermostats: 2-4
Max Water Temperature: 190° F
Max BTU's: 190,000

High Temp Master Valve Panel

CMValve-100-G-XXXX-2699-Ruud

# of Zones/Thermostats: 2-4
Max Water Temperature: 190° F
Max BTU's: 190,000

High Temp Master Actuator Panel

CMActuator-100-G-XXXX-2699-Ruud

# of Zones/Thermostats: 2-4
Max Water Temperature: 190° F
Max BTU's: 190,000

Each unit when installed and operated per the installation instructions has a 2-year warranty covering all parts and the heat exchanger. See manufacturer warranty for full details. Each Hydro Smart Integrator Panel, when installed and operated per the installation instructions, has a 1 year warranty covering all parts. No labor allowances. See manufacturer warranty for full details.

Micro-Boilers & Hydro Smart Integrator Panels sold separately. Guide is based on insulating to a R19 in walls, R38 in ceilings, maximum 12 ft. sidewalls, with 2” of extruded styrene insulation around perimeter & under slab emitter and/or 3-1/2” of fiberglass insulation for staple up emitter. For more accurate sizing, a BTU heat loss of the heated space should be considered.
ALWAYS CHECK WITH & FOLLOW LOCAL CODES
