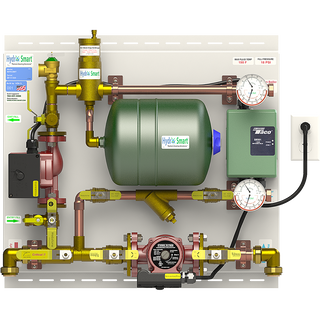

HSPS120HT Master Panel for Thermo 2000 Electric Boiler

The Master One Zone Panel is utilized when 1 thermostat zones is required in the system. The panel extracts the heated fluid from the boiler and processes the heated fluid to the Emitter Circuit. Boiler and Emitter circuits have hydraulic separation for independent flow adjustments.

The low temp model has a clear y strainer, while the high temp models features a brass y strainer.

Features

• Lifetime Tech Support
• Y-Strainer Isolators
• Hydraulic Separation Between Boiler and Emitter Circuits
• Precision Solder Joints
• Pressure Tested Solder Joints
• Clear Coat Over Copper
• 1-Year Limited Warranty
• Easy Access to All Major Components
• Quick Installation - Save 9+ Hours of Installation
• Works with more than 30+ Boilers - Gas & Electric
• 10 Ft. Power Cord
Shown with: Thermo2000 Electric Boiler, HSPS120HT Master Panel, (1) Thermostat and Tubing in Concrete Emitter
Square Footage:  Up to 3500 Sq. Ft, 12 Ft. Sidewall
Max Water Temp:  190° F
Max BTU:  120,000
# of Zones:  1
# of Thermostats:  1
Choose the zoning panel based on the number of zones you will have.  (2) Zones: HS1T2ZZV    (3) Zones: HS1T3ZZV    (4) Zones: HS1T4ZZV
Choose the zoning panel based on the number of zones you will have.  (2) Zones: HS2T2ZZV    (3) Zones: HS2T3ZZV    (4) Zones: HS2T4ZZV
