HSPS190HT Master Panel for HS199Con Gas Boiler

The Master One Zone Panel is utilized when 1 thermostat zones is required in the system. The panel extracts the heated fluid from the boiler and processes the heated fluid to the Emitter Circuit. Boiler and Emitter circuits have hydraulic separation for independent flow adjustments.

The low temp model has a clear y strainer, while the high temp models features a brass y strainer.


• Lifetime Tech Support
• Y-Strainer Isolators
• Hydraulic Separation Between Boiler and Emitter Circuits
• Precision Solder Joints
• Pressure Tested Solder Joints
• Clear Coat Over Copper
• 1-Year Limited Warranty
• Easy Access to All Major Components
• Quick Installation - Save 9+ Hours of Installation
• Works with more than 30+ Boilers - Gas & Electric
• 10 Ft. Power Cord

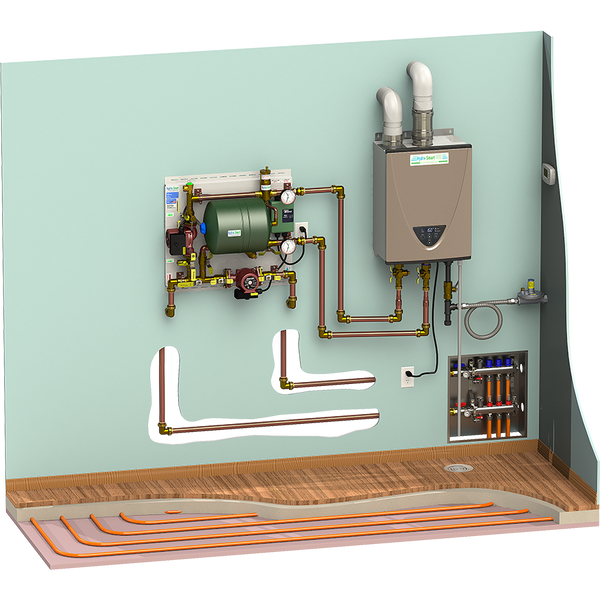

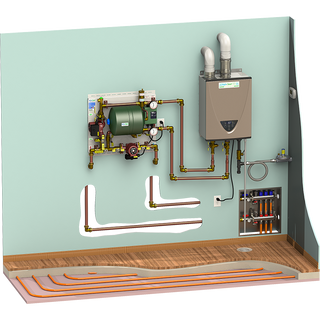

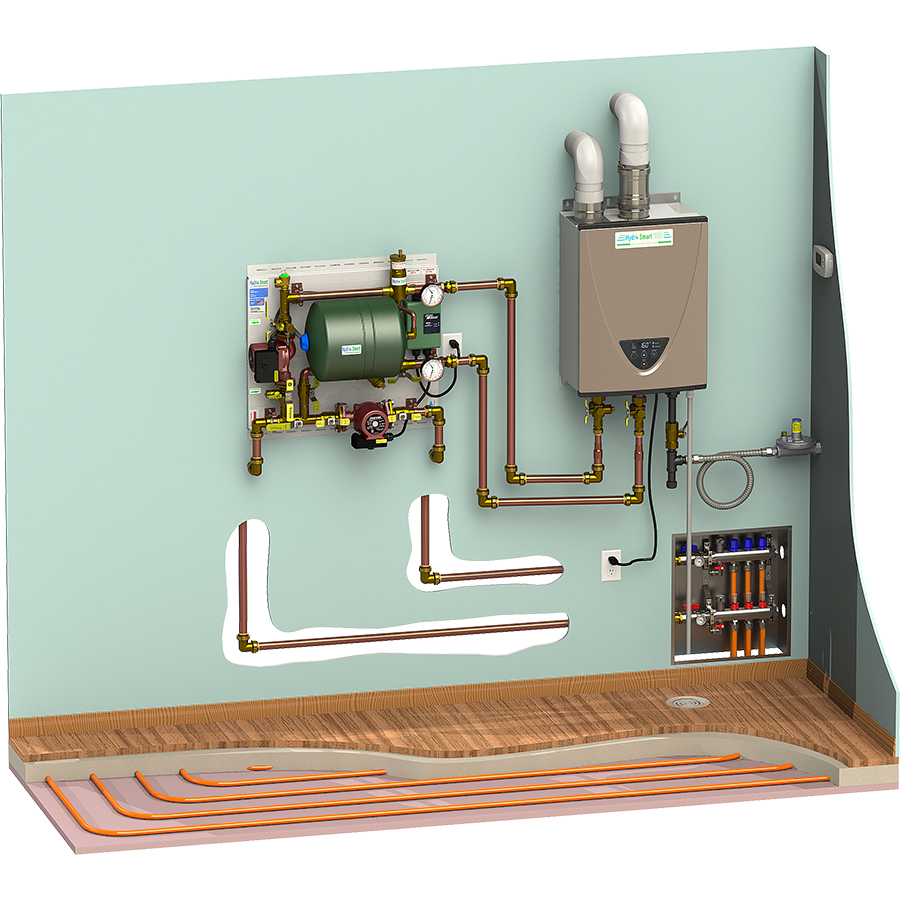

Shown with: HS199Con Gas Boiler, HSPS120LT Master Panel, (1) Thermostat and Tubing in Concrete Emitter
Square Footage:  Up to 6000 Sq. Ft, 16 Ft. Sidewall
Max Water Temp:  190° F
Max BTU:  190,000
# of Zones:  1
# of Thermostats:  1
